Josef Kihlberg 97 Series Stapler (12-19mm) JK24-690

Description

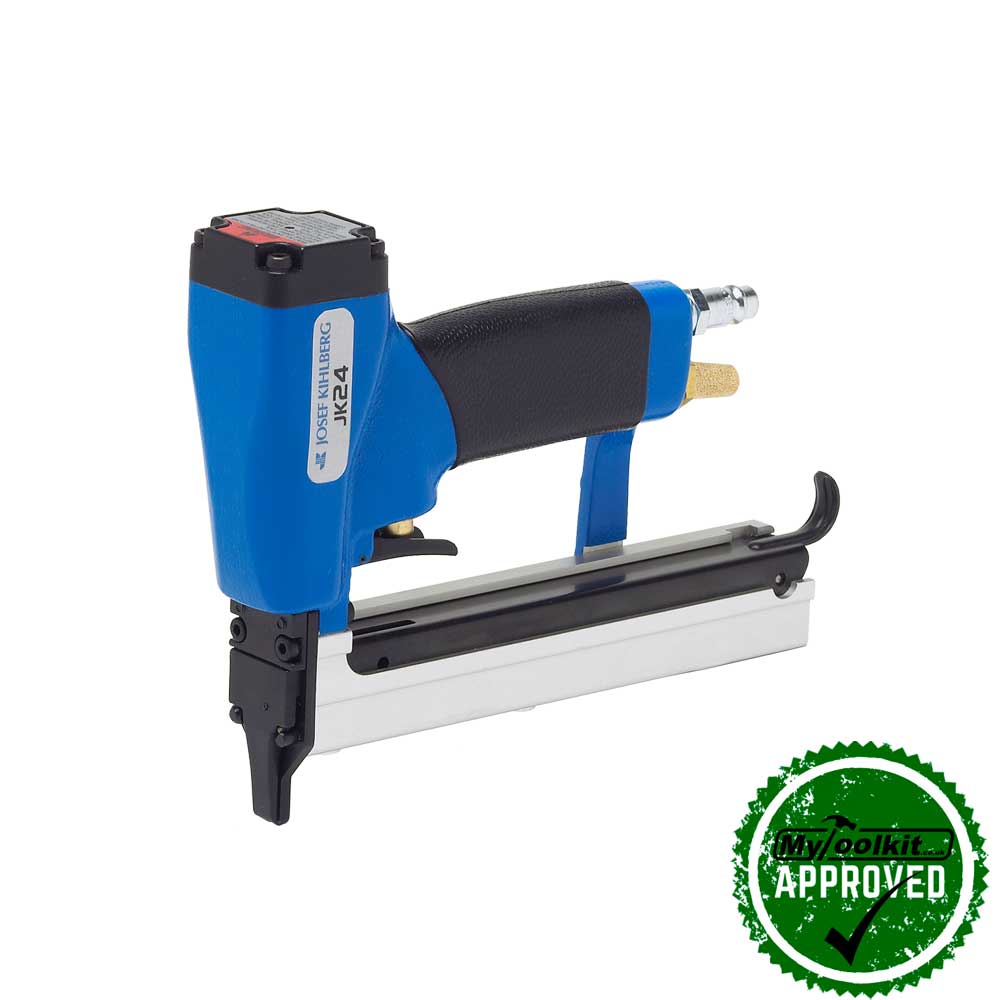

Josef Kihlberg Stapler JK24-690

Made to order – only the best for our Kihlberg customers!

We are excited to showcase the Josef Kihlberg 97 Series Stapler (JK24-690). The JK24-690 is a pneumatic, Swedish-manufactured, professional tool for the furniture industry.

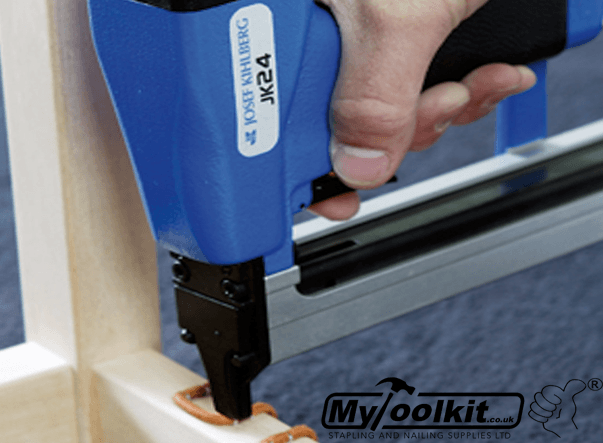

This single-shot tool is suitable for nailing boards on the backs of cabinet furnishings, bookshelves and drawer bottoms. To help keep your working day comfortable, the JK24-690 has negligible recoil, a good balance, and comes in at a relatively light weight. In terms of safety features, the magazine is loaded from the top to prevent accidental firing in the operator's face during loading.

The long and narrow design of the nose enables high-precision stapling, and the nose also has a pivoting door to make cleaning and removing jams easier. With the unique nose design, the stapler can get into awkward and confined spaces and grooves. The JK24-690 also has a very low noise level thanks to an effective muffler. This Kihlberg favourite drives our 97 Series Staples in lengths from 12mm to 19mm. If you are looking for a similar tool that drives a shorter leg length, check out the JK20-690!

Specification

• Length:230 mm | 9.1 in
• Width:43 mm | 1.7 in
• Height:188 mm | 7.4 in
• Weight:1,1 kg | 2.4 lbs
• Magazine capacity:125 fasteners
• Max. pressure:7,0 bar | 100 psi
• Staple leg length:12 - 19 mm | 1/2 - 3/4 in
• Nose length:20 mm | 0.8 in
• Recommended working pressure:5.0 - 6.0 bar | 70 - 85 psi
• Air consumption per driving operation at 6 bar operating pressure:0,2 litres
• Lubrication:Yes
• CE declared:Yes
• Noise characteristic levels according to:EN 12549
• A-weighted single-event emission sound pressure level at work station:85 dB
• A-weighted sound energy level:91 dB
• Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

Uses

Excellent for:

• Wood working
• Cane/rattan furniture
• Coffin manufacture
• Pet cages (mesh to wood)
• Window display
• Picture frames
• Runs/enclosures
• Presentation boxes
• Shoe repair
• Theatre/film scenery
• Exhibition/show construction
• Display/shop fitting
• Pine furniture manufacture
• Panelling
• Kitchen & Bedroom furniture
• Furniture frames
• Cabinet making
• Spring to frame
• Furniture
• Nailing boards
• Nailing bookshelves
• Nailing drawer bottoms

Warranty

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
