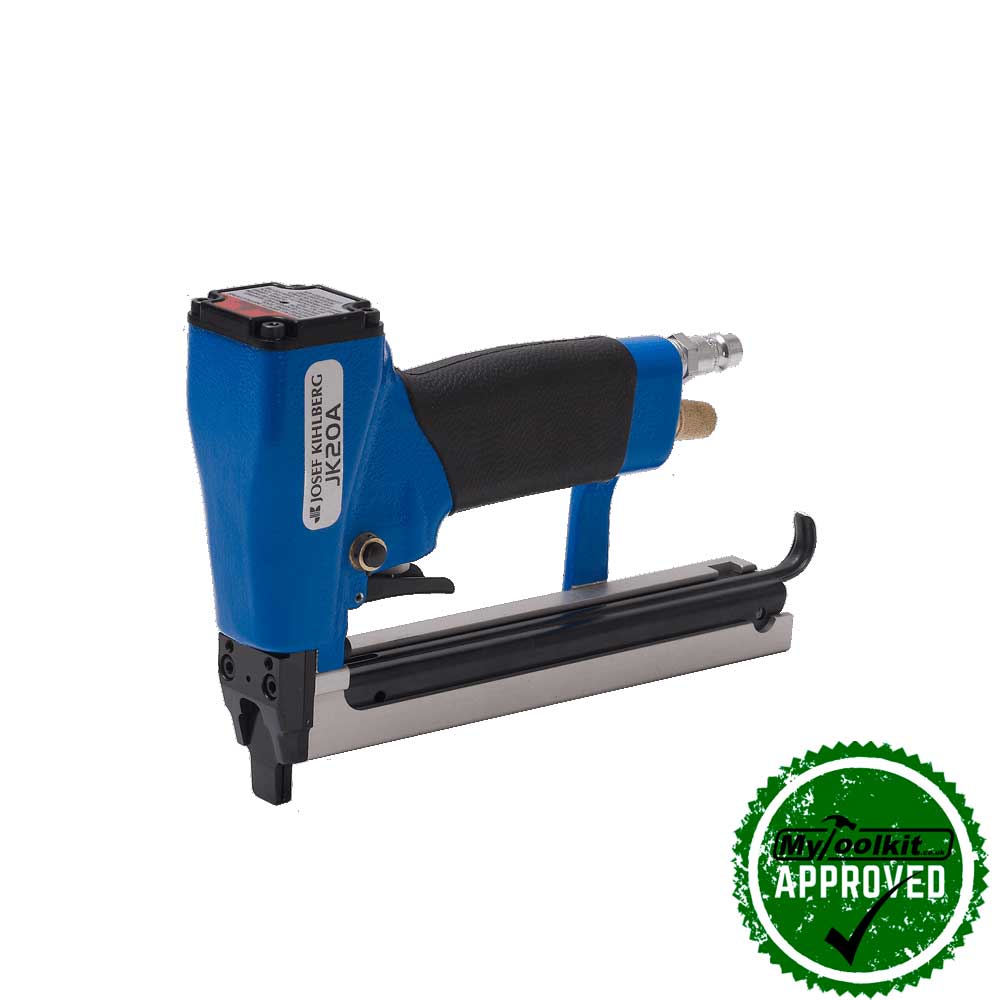

Josef Kihlberg 71 Series Staple Gun JK20A670

Description

Josef Kihlberg 71 Series Staple Gun JK20A670

A must for the bed makers!

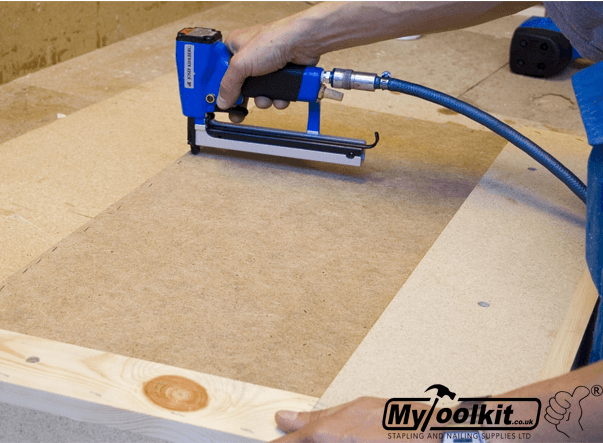

The Swedish-manufactured Josef Kihlberg 71 Series Stapler is a pneumatic tool made for the professional joiners and furniture makers – particularly good for making beds!

The JK20A670 is ergonomic, efficient, and most importantly, effective – saving you time and increasing profitability over time. This tool drives our excellent 71 Series Staples in lengths ranging from 6mm though to 12mm. We even have them available in four different finishes!

This upholstering stapler’s automatic operation is very fast, and comes also with a power adjuster. You can also turn off the automatic operation at the push of a button to switch to single-shop operation. This unique design makes working with this tool easy and enjoyable – and it doesn’t hurt that the JK20A670 is very quiet with negligible recoil too!

Want the bigger version of this tool then see the JK20A670 Josef Kihlberg 71 Series Staple Gun

Specification

• Exhaust Type: Rear
• Trigger Type: Automatic
• Safety: No
• Rubber Grip: Yes
• Power: Air (Compressor)
• Loading: Top
• Fastener Type: 23g 0.64mm Thickness 9mm Crown Staples 3-16mm
• Nose Type: Semi-Long
• Belt Hook: No
• Easy Clear Jam: No
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: No
• Usage: Pro Industrial
• Weight: 2Kg
• Made to order in Sweden
• Length:230mm
• Width:43mm
• Height:150mm
• Magazine capacity: 179 fasteners
• Nose length:14mm
• Recommended working pressure: 70-90 psi
• Air consumption per driving operation at 6 bar operating pressure:0,2 litres
• Lubrication:Yes
• CE declared:Yes
• Noise characteristic levels according to:EN 12549
• A-weighted single-event emission sound pressure level at work station: 85 dB
• A-weighted sound energy level:91 dB
• Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

Uses

Excellent for:

• Upholstery
• Boat interiors
• Picture frames
• Exhibition work
• Furniture
• Shoe making
• Home insulation and lining
• Felt insulation
• Casebacks
• Office screens
• Wire to mesh
• Pelmets
• Theatre sets
• Window Boxes
• Awnings
• General Upholstery tasks
• Door cards
• ...so much more...

Warranty

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
