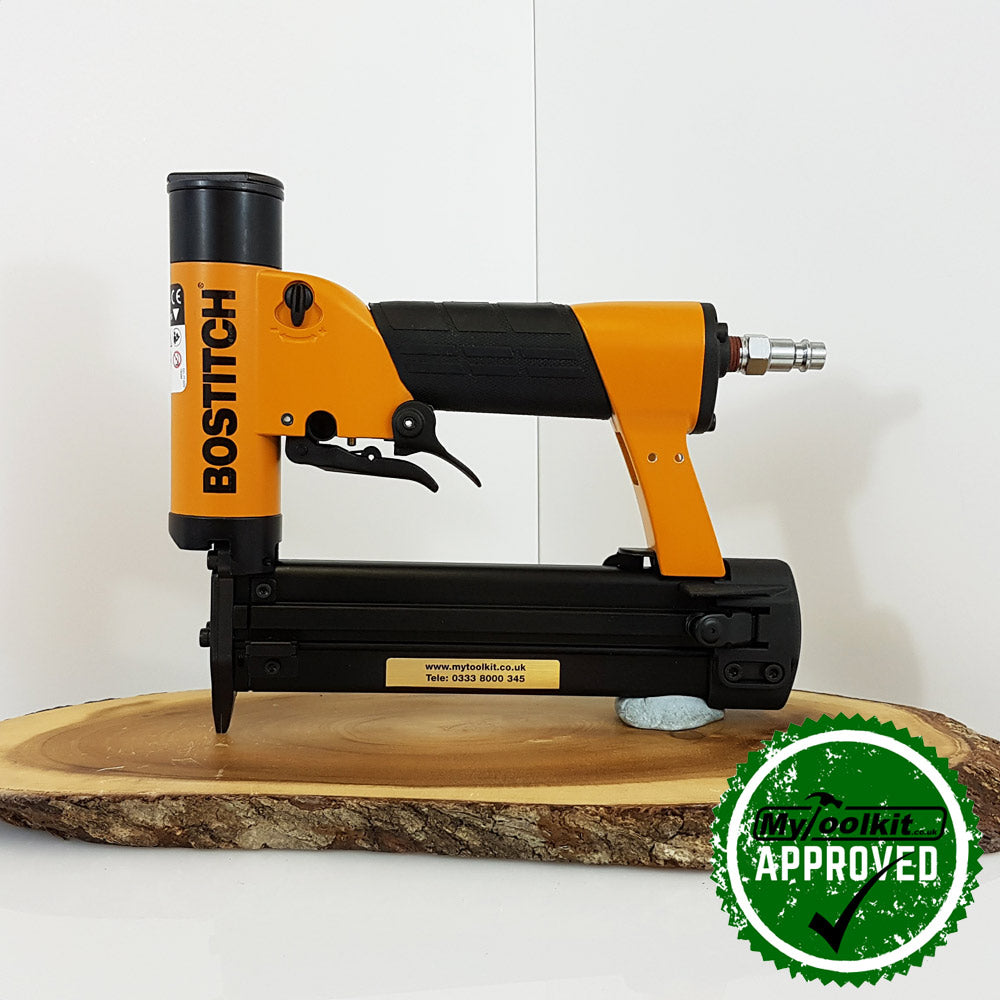

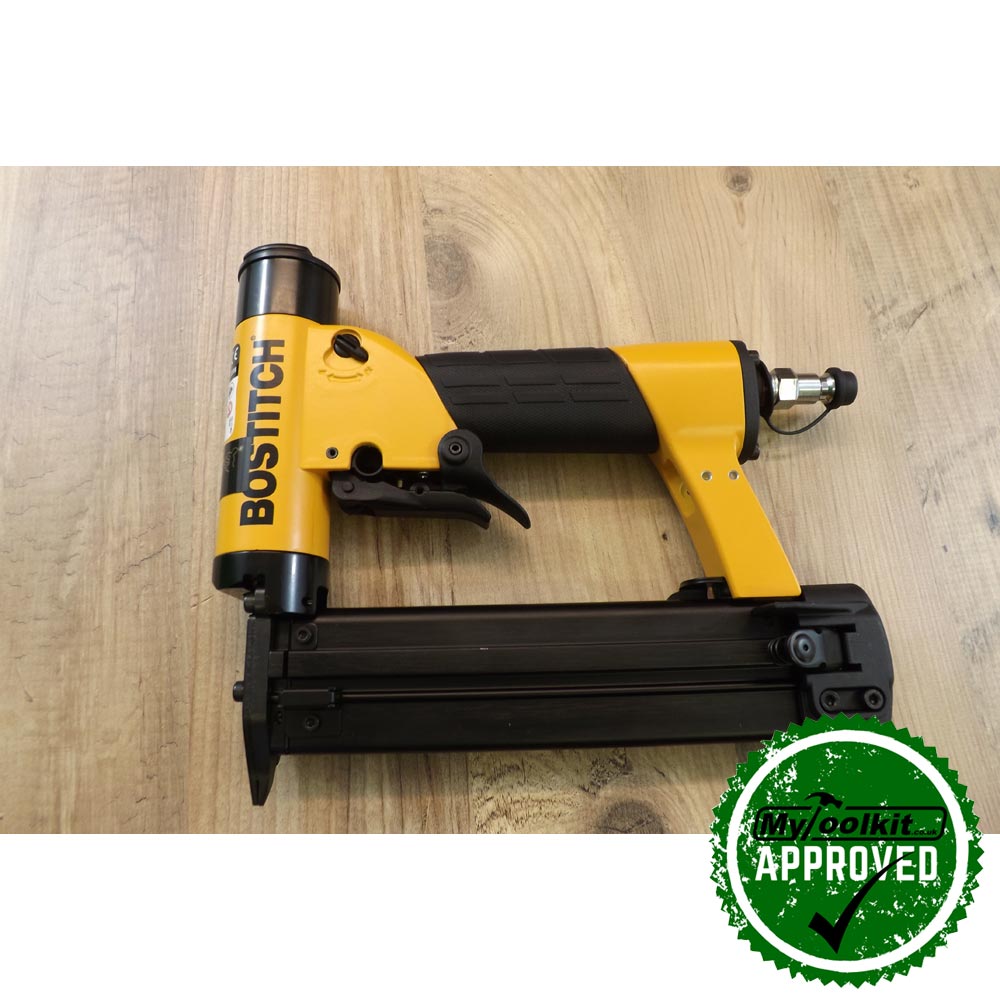

Bostitch 23G Headless Pinner (12-30mm) TU-216-2330K-E

Description

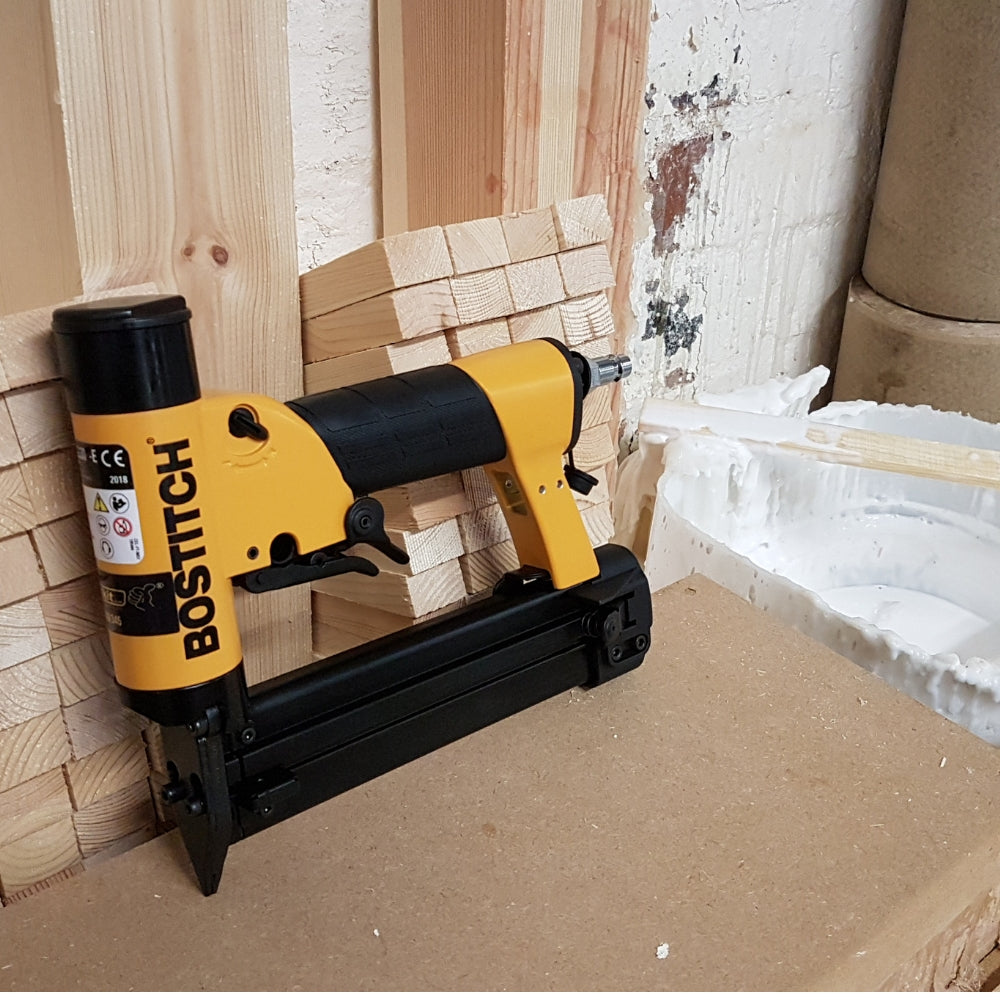

Bostitch 23 Gauge Headless Pinner(10-30mm) TU-216-2330K-E

“Worth paying a bit more for a brand like this” – a very happy customer!

This Stanley Bostitch 23 Gauge Headless Pinner oozes quality. From the online reviews down to the projects it creates, there is no doubt this tool has a big fan following.

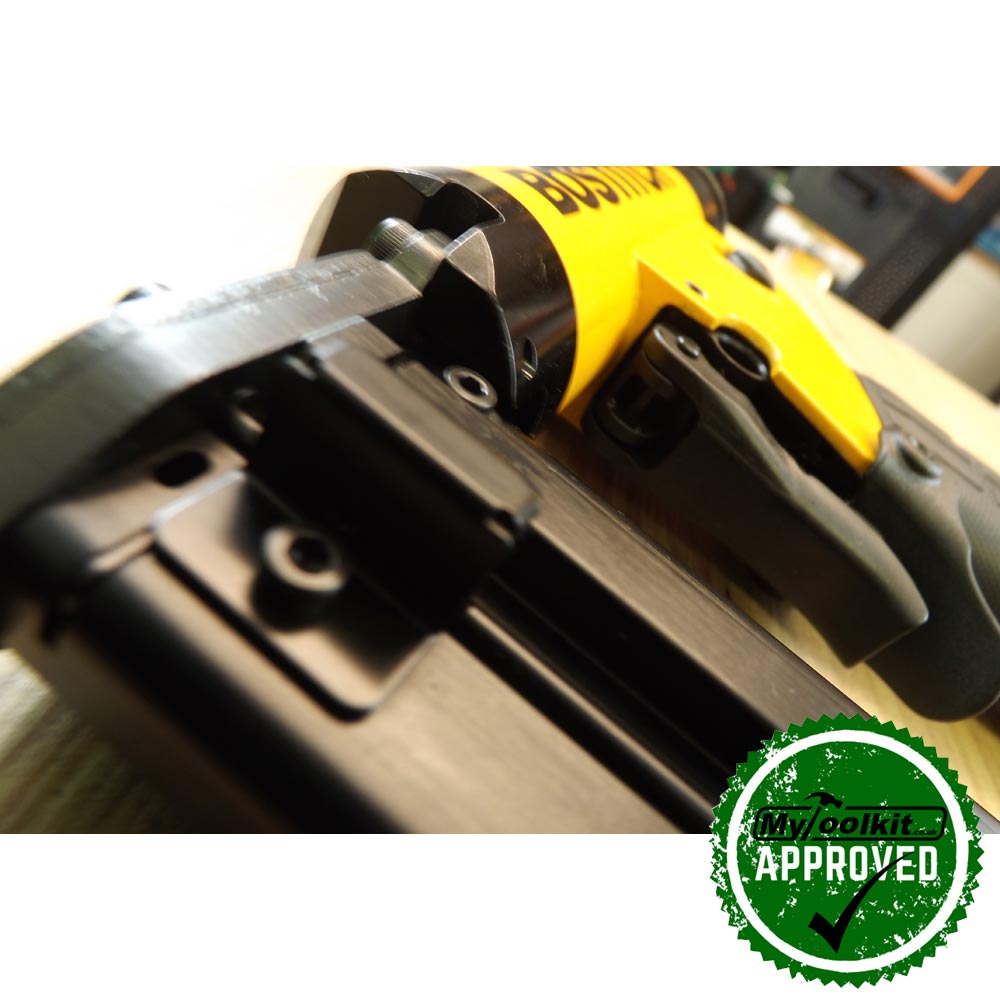

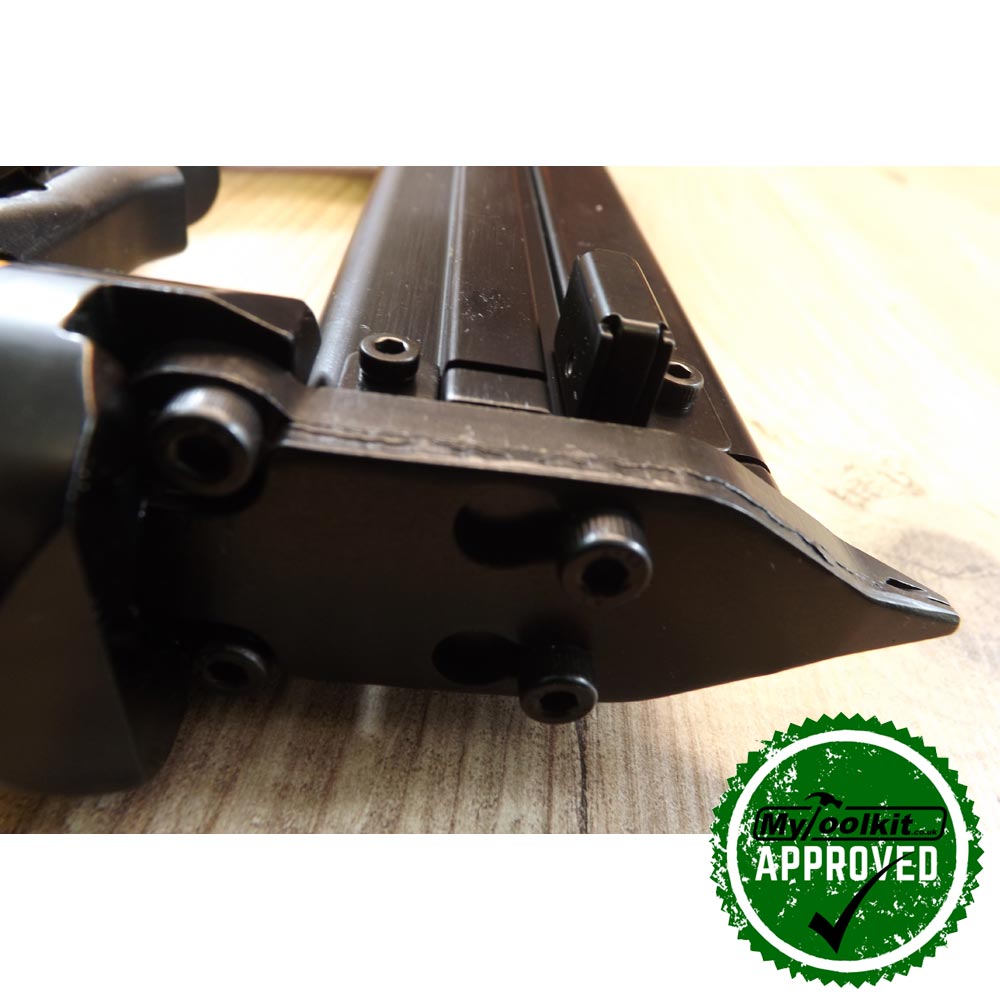

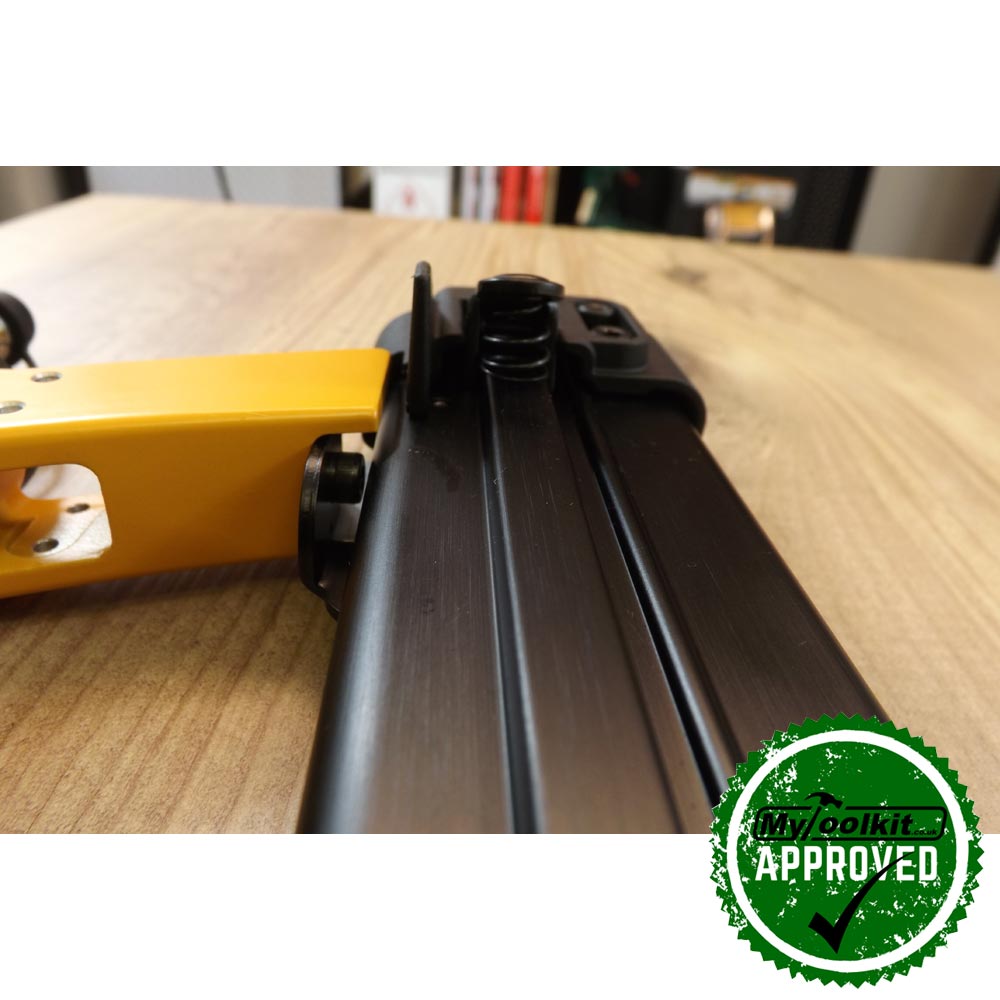

The slide open, auto-adjusting magazine is easy to load, and the fine nose allows the pins to enter the wood precisely and smoothly. This Bostitch lightweight 23G Pinner also has an air regulator for adjustment designed for improved results on both hard and soft woods. This makes the tool an excellent all-rounder – definitely worth the slightly higher price tag.

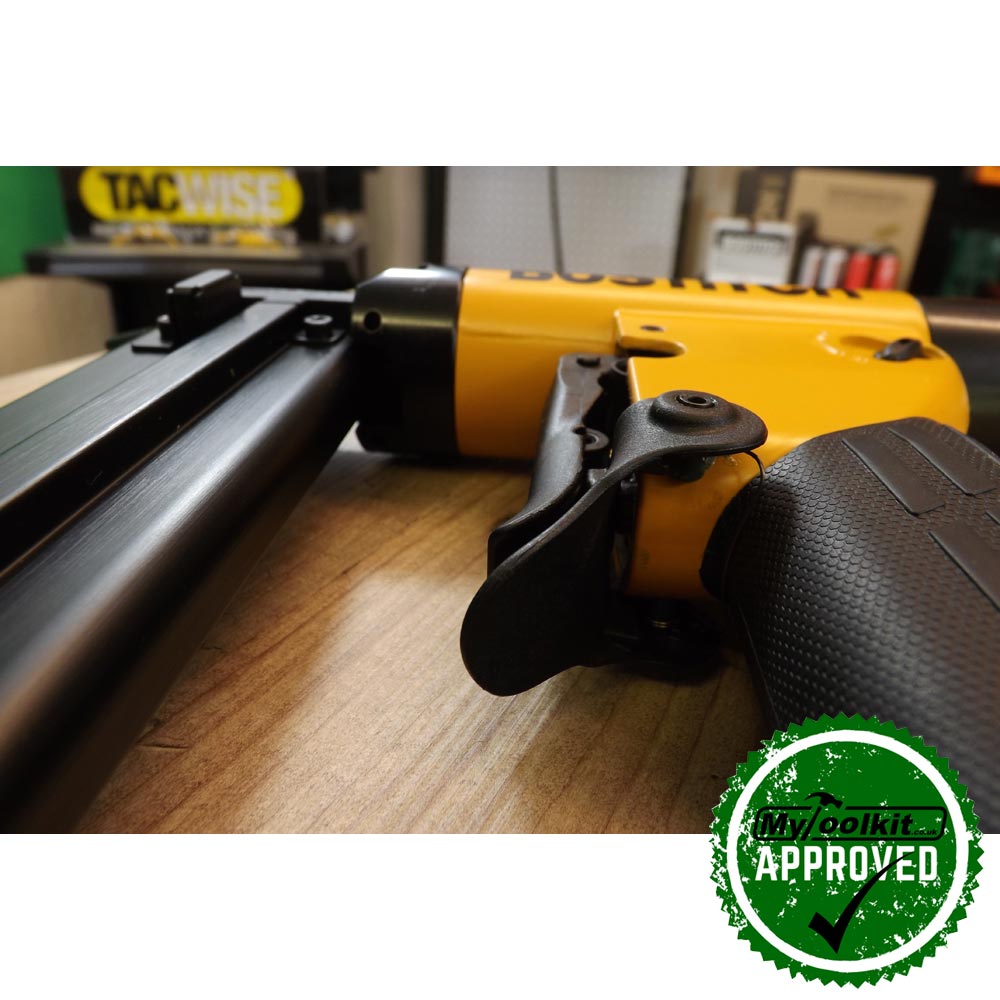

Safety is also one of this tool’s main concerns with a secondary trigger needed to be activated to produce the pins – no more accidents! Whether you’re using this tool for fine beading and moulding, or for furniture manufacture, you’ll be more than satisfied with what it has to offer. Parts are readily available for this tool in the unlikely chance you may require any!

The Bostitch 23 Gauge Headless Pinner drives 23 Gauge Headless Pins in lengths 12mm to 30mm. We have these pins readily available in Liquor, Galvanised, and Stainless Steel (anti-rust) finishes. Take a look at our range here!

Want to ask us any questions? Either give us a call on 0333 8000 345 or drop us a short message using our online form!

Take a 3 minutes out to watch our handy review video below and pick up some tips.

Specifications

• Depth Adjuster: Power Adjuster
• Exhaust Type: Rear
• Trigger Type: Single Shot
• Safety: Trigger
• Rubber Grip: Yes
• Power: Air (Compressor)
• Loading: Side
• Fastener Type: 23G 0.64mm Thick 12-30mm Headless Pins
• Nose Type: Slim, No Mar
• Belt Hook: No
• Easy Clear Jam: No
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: No
• Usage: Pro Industrial
• Weight: 0.944Kg
• Width-Depth-Height: 368 x 97 x 290mm
• Load Capacity: 150
• PSI: 90-120
• dBA (noise): 90
• Warranty: 12 Months
• Width 40 mm
• Length 230 mm
• Height 198 mm
• Magazine capacity (max) 200
• Operating pressure 80 - 7.00 BAR
• Air Consumption Ltr.per shot @ 5.6 bar 52
• Noise LPA 1sd   10
•  LWA 1sd           10
• LPA 1s, 1m       90
• Vibration / Uncertainty  < 2.5 / N/A m/s2

Uses

Excellent for:

• Beading and moulding
• Picture frames
• Presentation boxes
• Floor boards
• Bannisters
• Theatre sets
• Window Frames
• Coffins
• Furniture
• Cabinet making
• Carpentry and Joinery in general
• Furniture manufacturing
• Boat building
• Fire places
• Garden Buildings
• Much more....where secret pinning is required

Warranty

Stanley Bostitch offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty:

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
