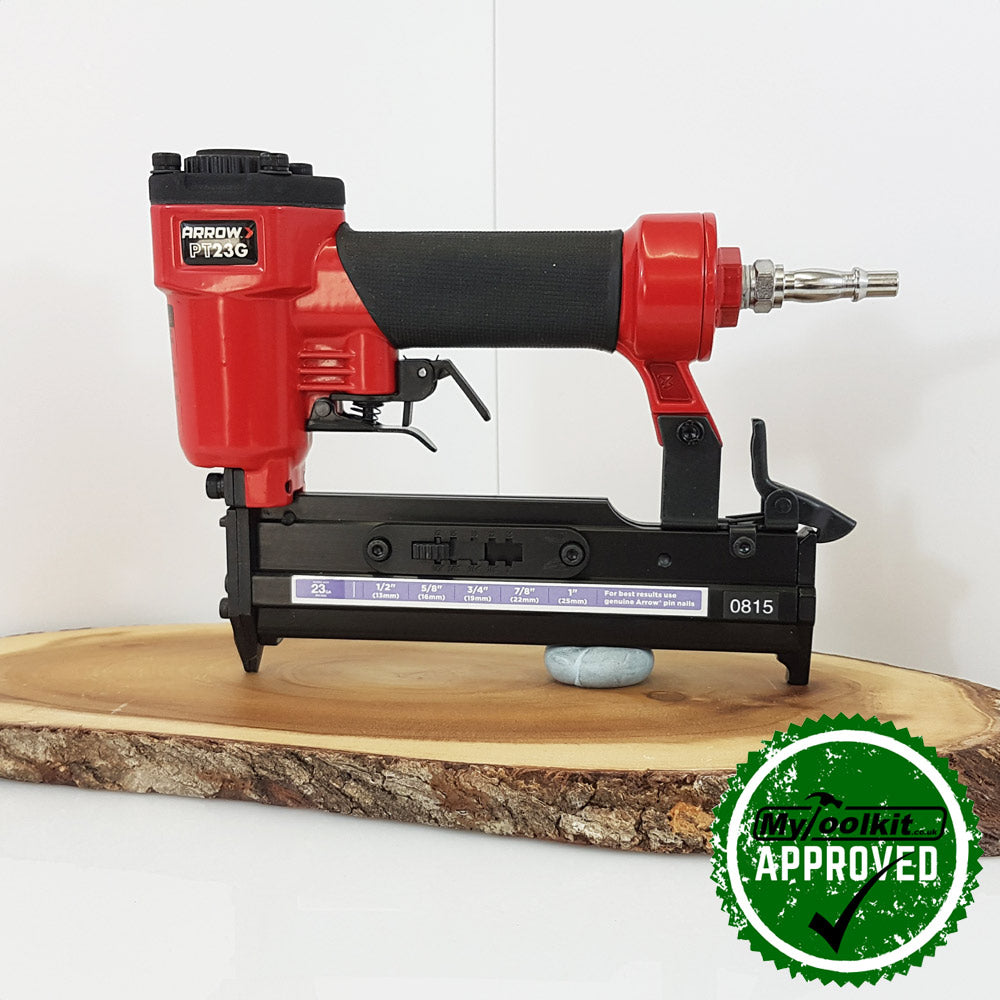

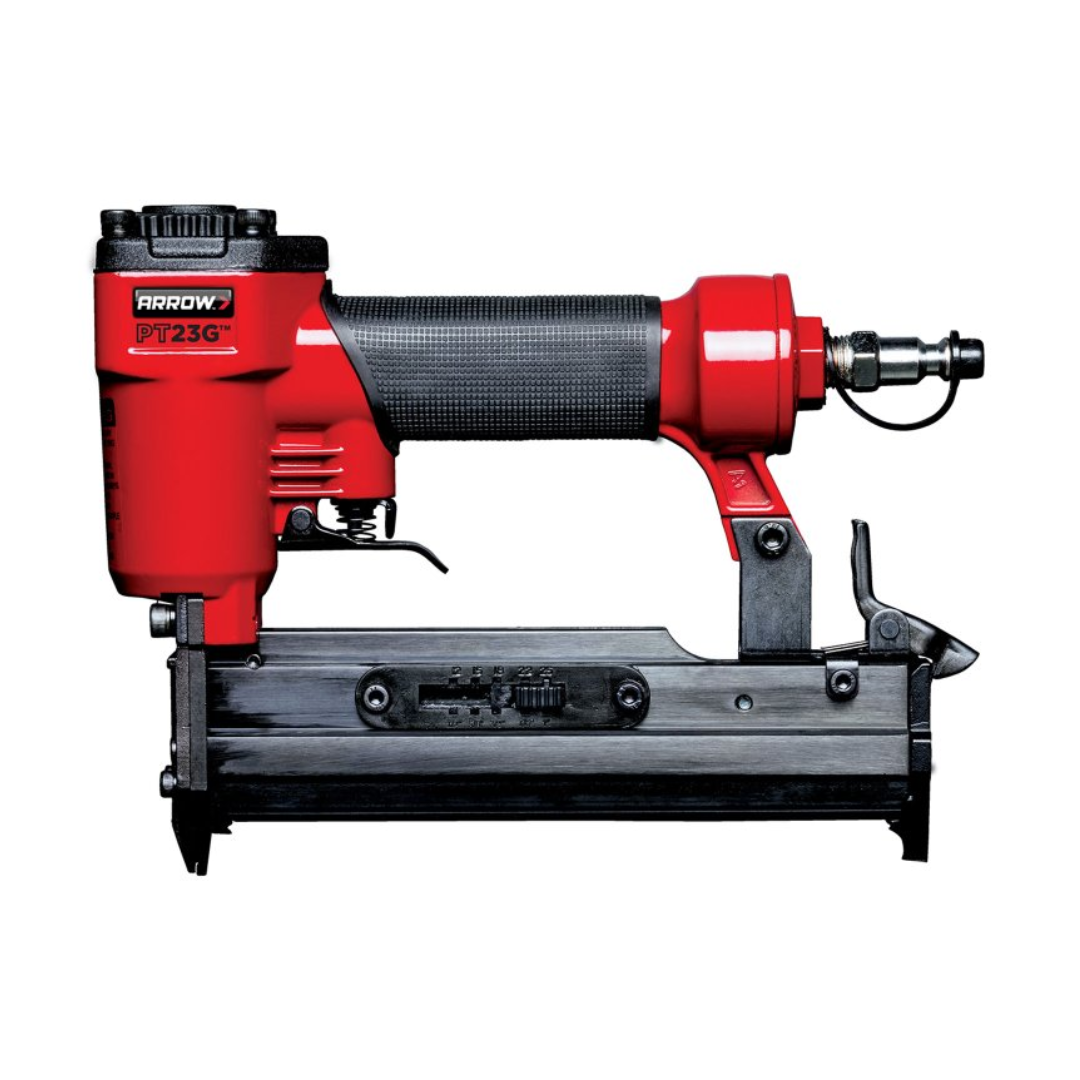

Arrow 23 Gauge Air Operated Headless Pinner (12-25mm) PT23G

Description
Specification
Uses
Warranty

Description

Arrow 23 Gauge Headless Pinner (12-25mm) APT23EUK

The Arrow 23 Gauge Headless Pinner is our most affordable choice in its category. But don’t been fooled, a low price does not mean low quality! With a narrow nose that allows for manoeuvrability in small spots, and a secondary trigger for additional safety, the APT23EUK packs so many great features into such a lightweight and compact tool.

Another great feature is its no-mar tip to help protect your projects against marks, and an exhaust deflector to keep any output away from your face. The tool drives 23 Gauge Headless pin which are very slight, and having no head means that you can achieve the perfect finish as the pins appear virtually invisible. Also – no need for wood fill or paint!

The APT23EUK drives 23 Gauge headless pins from 12mm to 25mm in length. We have those pins in three separate finishes: Liquor for the economy option, Galvanised for middle-of-the-road price range and Grade 304 Stainless Steel for that luxury finish – the Stainless Steel is also necessary when working outdoors and in damp environments.

Need to contact us or ask any questions? Use our contact form and write to us, or if it’s more urgent, give us a call on 0333 8000 345.

Have a look at our review video on the APT23EUK below! It’s a good one!

Specification

Trigger: Dual Safety Trigger
Weight: 0.9 kg
Load Capacity: 170 Pins
PSI: 70-100
Brad Type: 23G (Headless)
Brad Length: 12mm - 25mm
Carry Case Included: No
Powered By: Compressor
Warranty: 12 Months

Uses

Excellent for:

Beading and Moulding
Cabinet Making
General Carpentry and Joinery
Bedding & picture/mirror frames
Coffin Manufacture
Display & shop fitting
Kitchen & bedroom furniture
Pine furniture manufacture
Porta cabins, mobile homes, caravans
Presentation boxes
Toy manufacture
Window frames and beading

Warranty

1 year warranty Arrow 23 Gauge Headless Pinner (12-25mm) APT23EUK

Arrow offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
