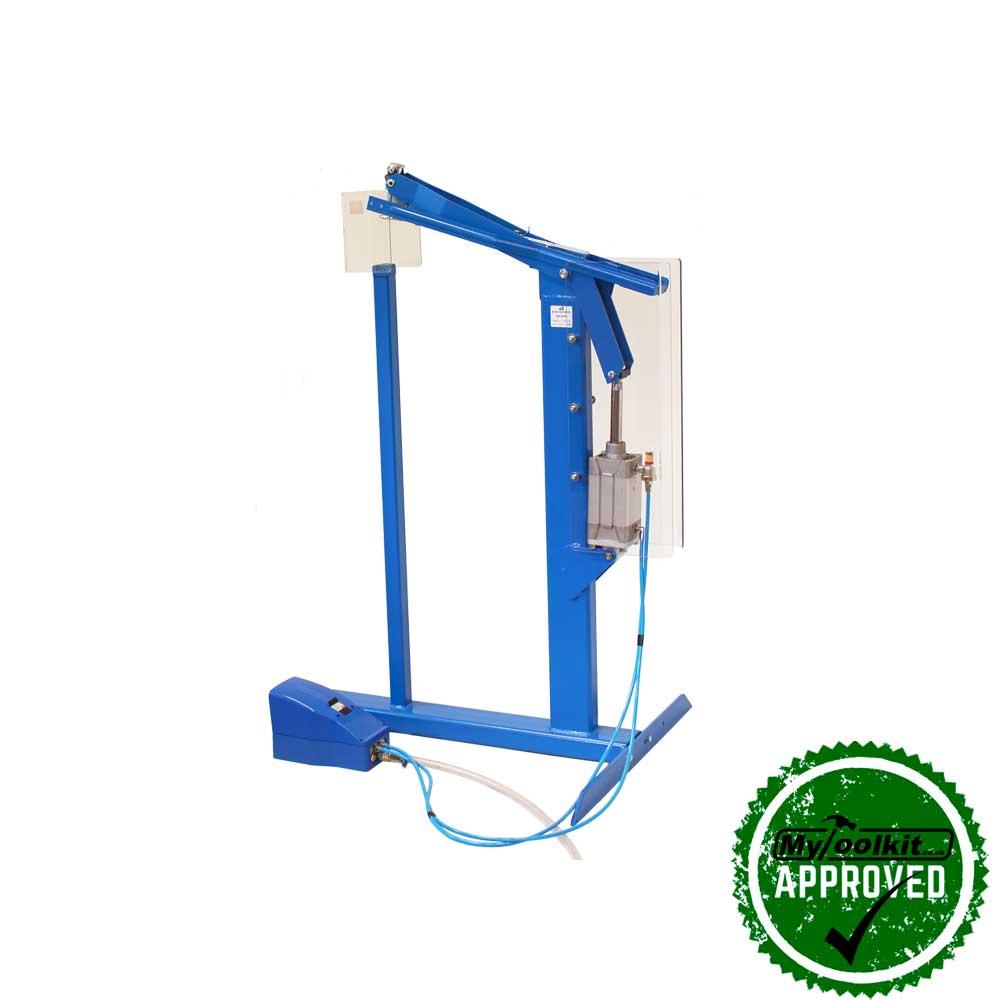

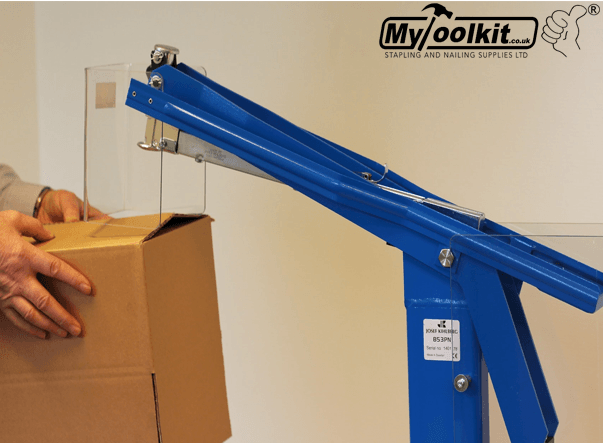

If you want to achieve one of the strongest and safest closures of cartons, our Swedish-manufactured B53PN bottom stapler is an obvious choice. It is spacious, ergonomic and has a large loading capacity. Compared to JK560 and JK561 staples, stapling will be less visible with JK53 staples. This professional tool is suitable for continuous use in packaging departments and in industry.
Depth Adjuster: Clinch and Depth
Trigger Type: Single Shot
Exhaust Type: Rear
Power: Air (Compressor)
Fastener Type: 19 Gauge JK53 Series 14.9mm Crown Staples 9, 12 and 15mm
Nose Type: Flat
Belt Hook: No
Easy Clear Jam: Yes
Carry Case: No
Dry Fire Lockout: No
Fastener View: Yes
Usage: Pro Industrial
Made to Order in Sweden
Stapling gap: 95mm
Throat depth: 400mm
Free anvil height: 1000mm
Magazine capacity: 312 fasteners
Recommended working pressure: 5,0 bar | 70 psi
Air consumption per driving operation at 6 bar operating pressure: 2,0 litres
CE declared: Yes
Noise characteristic levels according to: EN 12549
A-weighted single-event emission sound pressure level at work station: 84 dB
A-weighted sound energy level: 91 dB
This product is made to order please contact us for availability.
Number: 0333 8000 345 - or write to us here
Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.
12 Month Warranty
This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
For more information see our Shipping and Returns policy.
