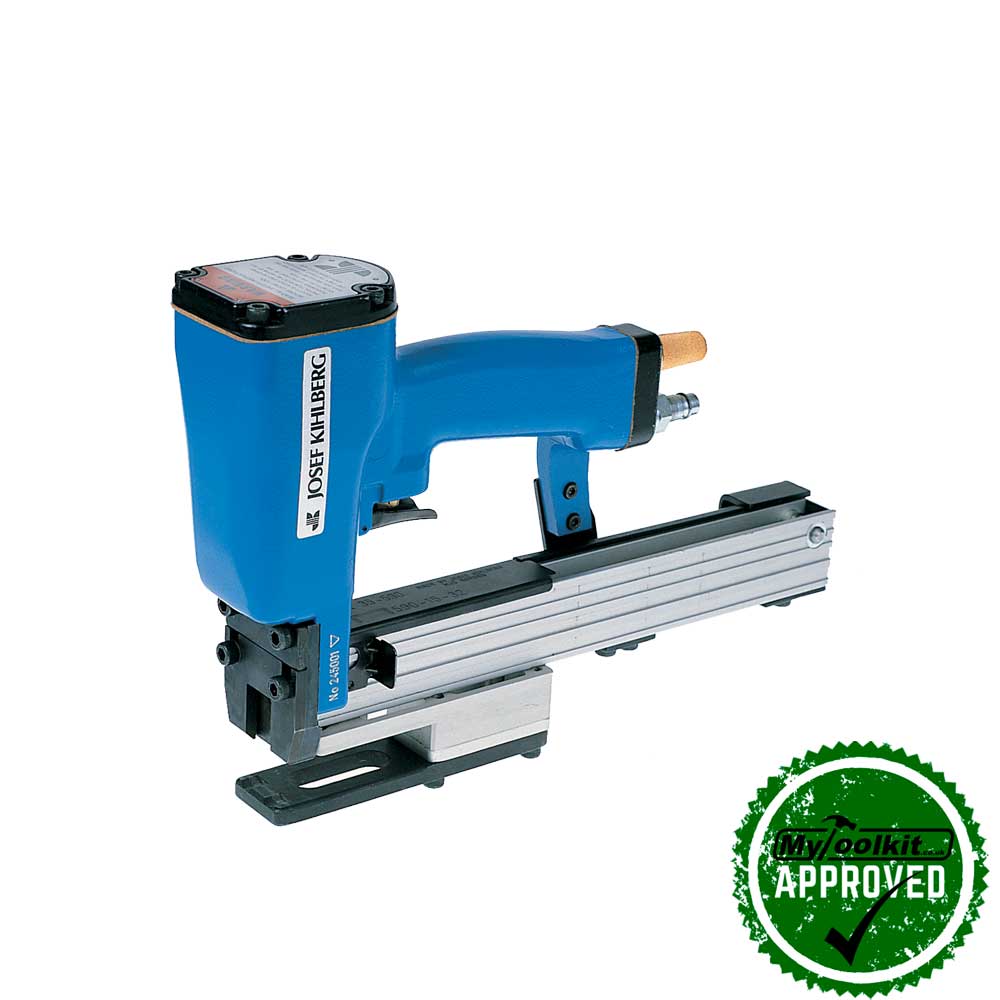

Our professional Swedish-manufactured JK35T590 pneumatic plier stapler is suitable for sealing large corrugated packaging, stapling thicker cardboard, edge protection, sealing end caps, end pieces, etc. The JK35T590 has a fixed tongue allowing for rapid lateral movement. The pliers work with wide-shank JK590 packaging staples, with leg lengths from 19 mm to 32 mm. Using spacer plates, the stapling gap can easily be adjusted for different thicknesses from 12 mm to maximum 27 mm. Spacer plates of 3 mm and 6 mm are delivered as standard with the pliers. The unique combination of heavy-duty pliers and broad-backed staples offers many new solutions to difficult-to-solve packaging problems. The JK35T590 is a durable and stable tool with few moving parts.
JK35T590 together with the stapler JK35-590 with JK590 staples gives you a complete and cost effective solution.
This product is made to order please contact us for availability and the cost of delivery.
Number: 0333 8000 345 - or write to us here
Length: 335 mm | 13.2 in
Width: 65 mm | 2.6 in
Height: 220 mm | 8.7 in
Weight: 2.7 kg | 6.0 lbs
Stapling gap: 12 - 27 mm | 0,5 in
Throat depth: 65 mm | 2.6 in
Magazine capacity: 100 fasteners
Max. pressure: 70 bar | 100 psi
Staple leg length: 19 - 32 mm | 5/8 - 1 1/4 in
Recommended working pressure: 5,5 - 6,5 bar | 80 - 87 psi
Air consumption per driving operation at 6 bar operating pressure: 0,85 litres
CE declared: Yes
Noise characteristic levels according to: EN 12549
A-weighted single-event emission sound pressure level at work station: 94 dB
A-weighted sound energy level: 103 dB
Vibration level: Vibrationrate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

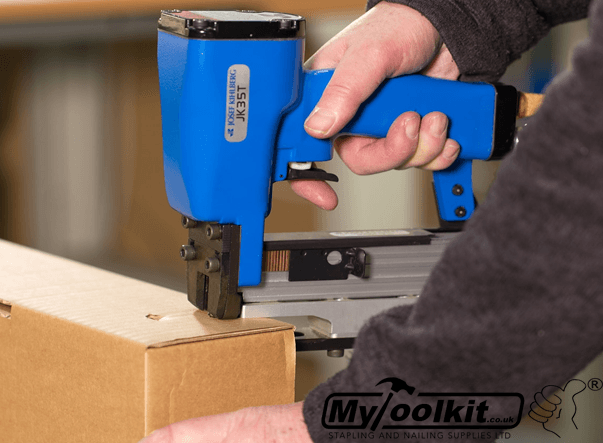

- Sealing large corrugated packaging, stapling thicker cardboard, edge protection, sealing end caps, end pieces etc.
- Difficult to solve packaging problems
