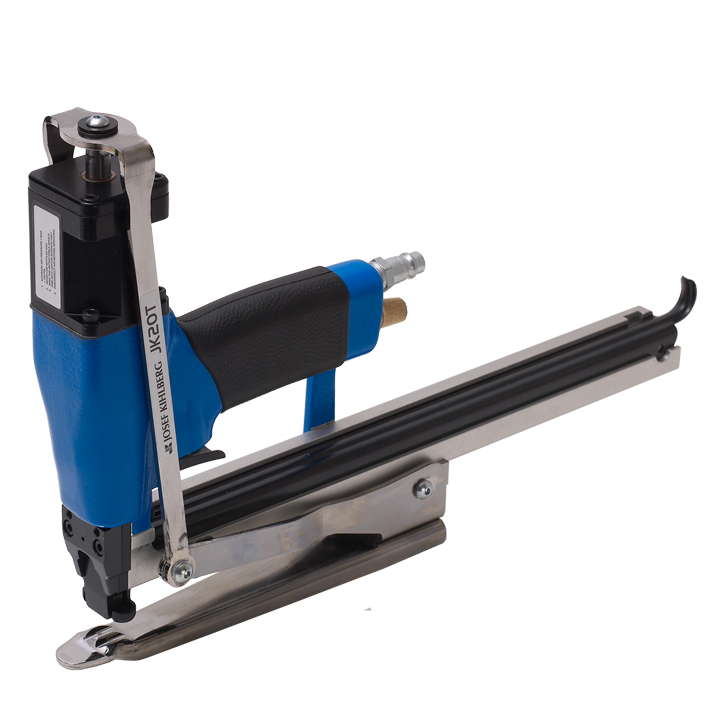

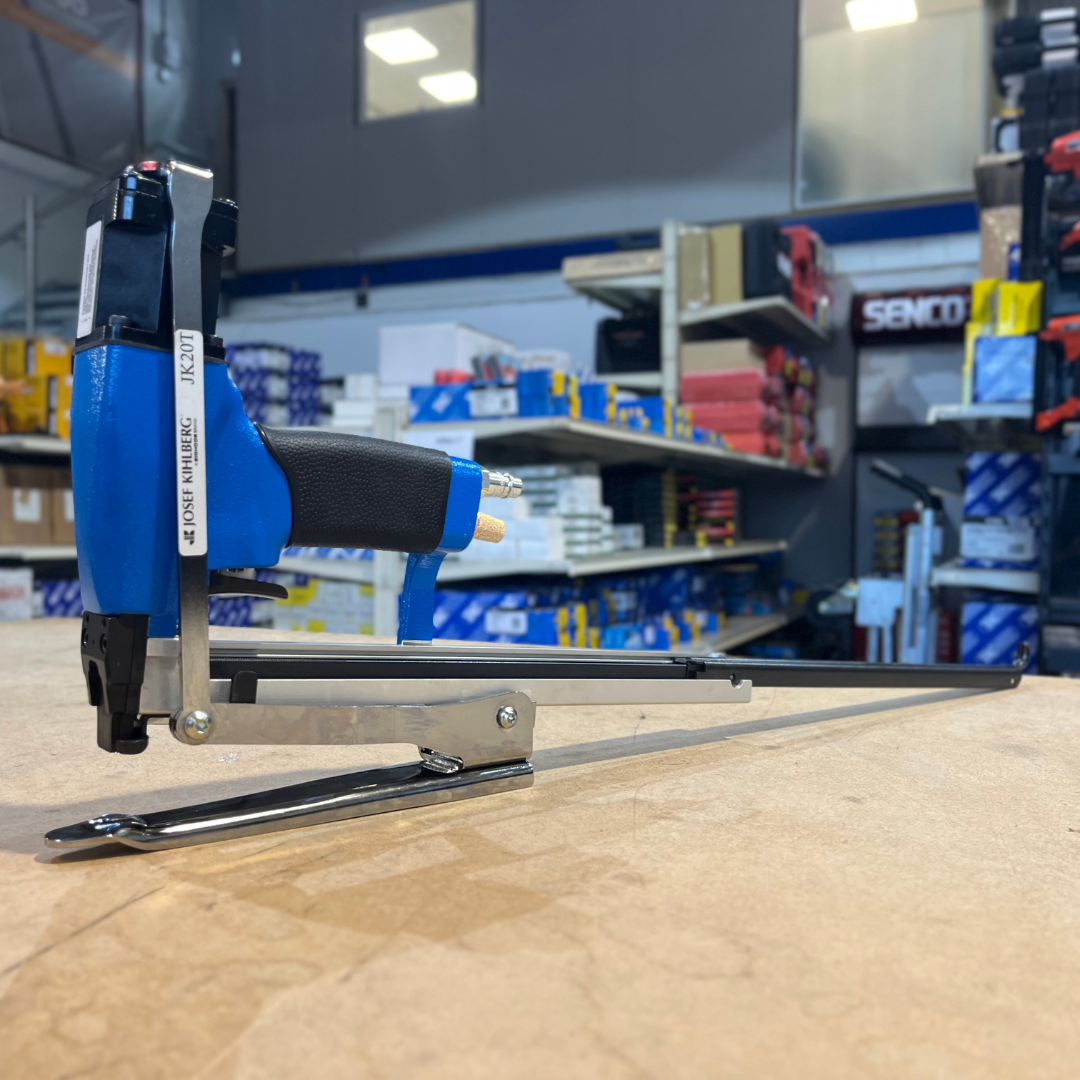

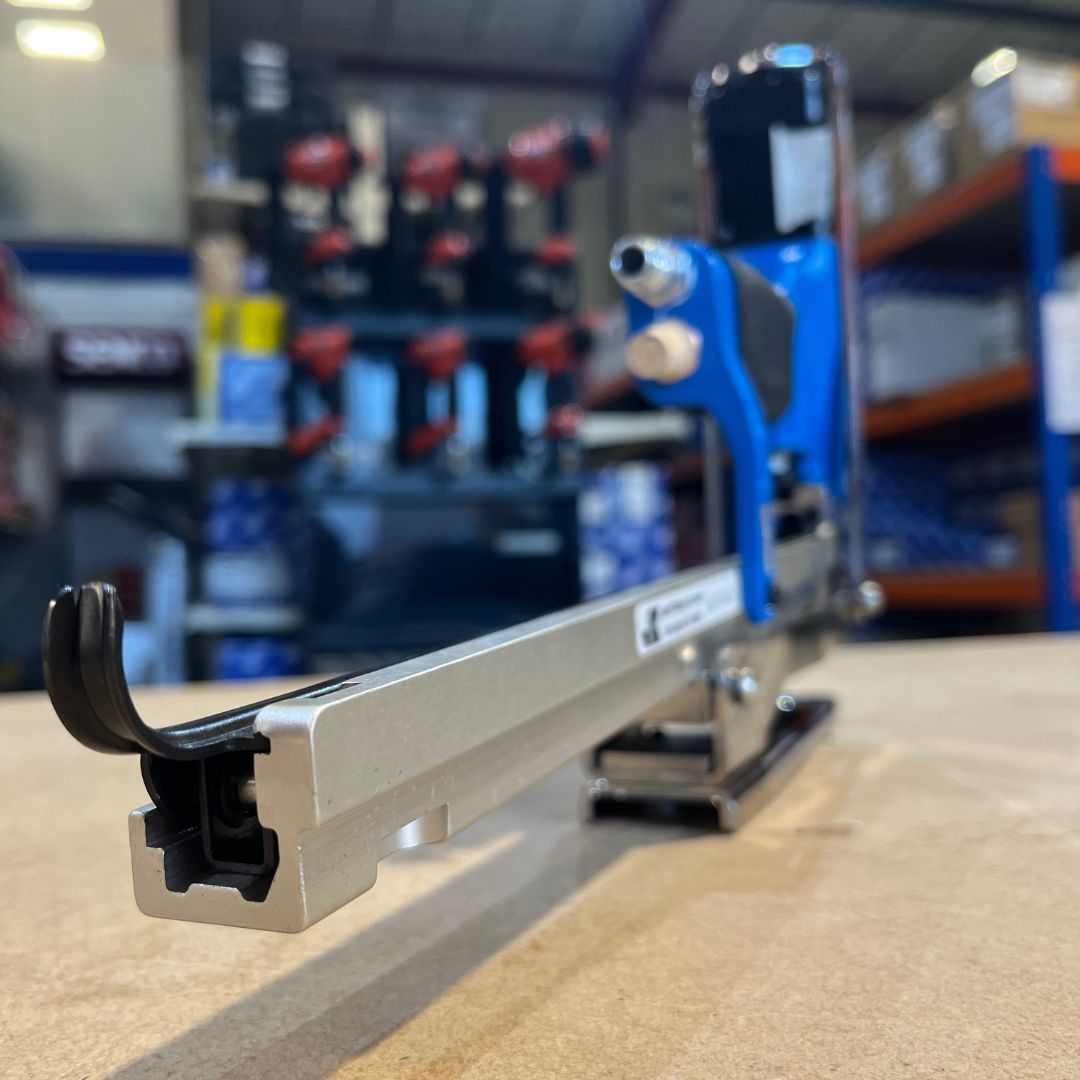

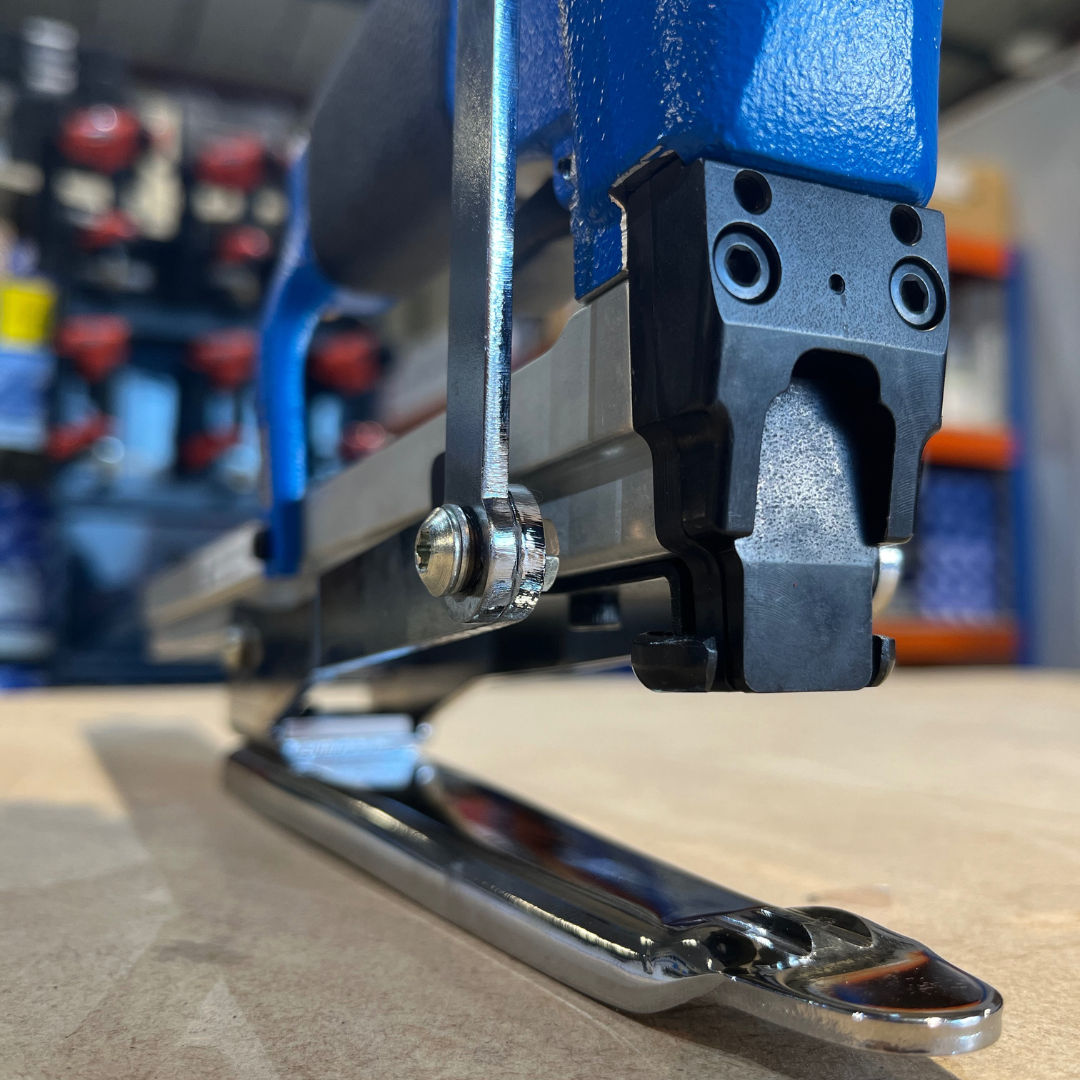

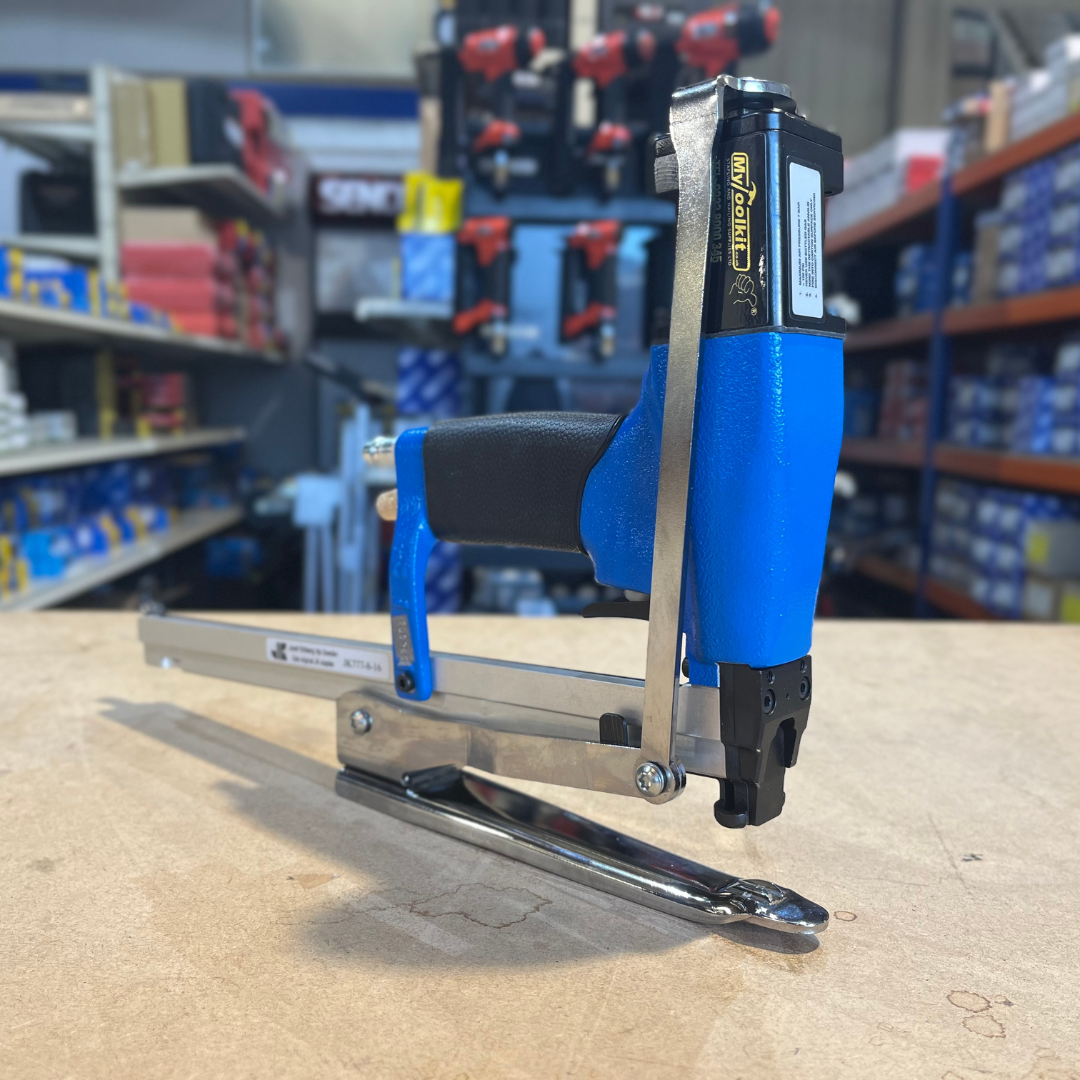

Josef Kihlberg Stapling Plier JK20T777L

Josef Kihlberg Stapling Plier JK20T777L

Regular price £784.37 GBP
Regular price Sale price £784.37 GBP
Sale Sold out
Tax included.


Professional use-

A Swedish-manufactured, heavy-duty stapling plier for professional users.

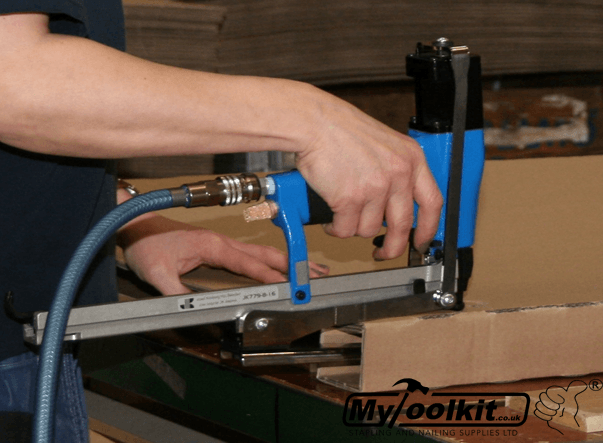

Characteristic for this tool is its quiet, rapid stapling, low weight and good balance. The design of the anvil allows the material to be handled with care. The tool is primarily intended for stapling of packaging such as packages, punch-cut inserts, bags, sheets, sacks and various types of fabric, but is also ideal for such applications as industrial stapling and the joining of different materials. For this industrial stapling plier heavy duty is no problem!

This product is made to order please contact us for availability.

Number: 0333 8000 345 - or write to us here



  • Exhaust Type: Rear
  • Trigger Type: Single Shot
  • Safety: No
  • Rubber Grip: Yes
  • Power: Air (Compressor)
  • Loading: Rear
  • Fastener Type: 17 Gauge JK777 Staples Crown 12.6mm 10-16mm Staples
  • Nose Type: Plier
  • Belt Hook: No
  • Easy Clear Jam: Yes
  • Carry Case: No
  • Dry Fire Lockout: No
  • Fastener View: No
  • Usage: Pro Industrial
  • Weight: 2.2Kg
  • Made to order in Sweden
  • XL Magazine
  • Length:375mm
  • Width:68mm
  • Height:250mm
  • Stapling gap:22mm
  • Throat depth:140mm
  • Magazine capacity: 100 fasteners
  • Nose length:14mm
  • Recommended working pressure: 70-90 psi
  • Air consumption per driving operation at 6 bar operating pressure:0,4 litres
  • Lubrication:Yes
  • CE declared:Yes
  • Noise characteristic levels according to:EN 12549
  • A-weighted single-event emission sound pressure level at work station:89 dB
  • A-weighted sound energy level:96 dB
  • Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.


Excellent for:

  • Rapid stapling
  • Packaging
  • Punch-cut inserts
  • Bags sheets
  • Sacks
  • Various types of fabrics


1 year warranty Josef Kihlberg Stapling Plier JK20T777L

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
