Josef Kihlberg Stapler JK20A689L

Inc. VAT and Free UK Mainland Shipping

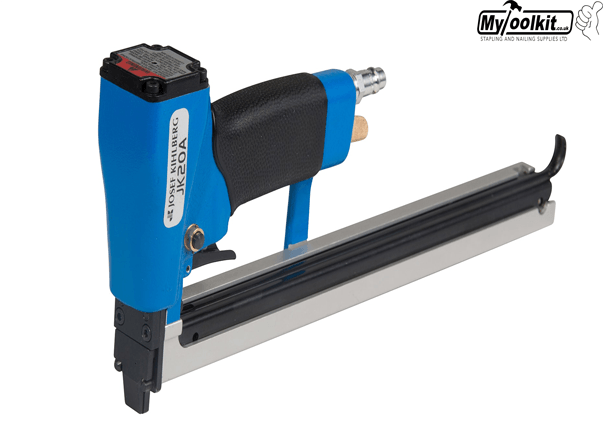

JK20A689L Josef Kihlberg Stapler

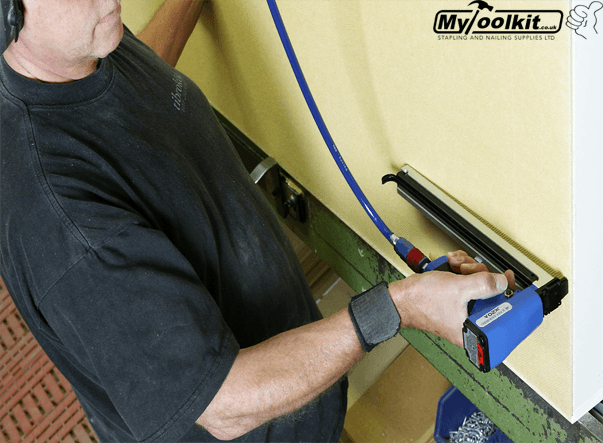

Our Swedish-manufactured JK20A689L pneumatic tool for professionals is an excellent tool for back nailing of closets and tall kitchen furniture. The JK20A689L has a high level of efficiency that saves time and increases profitability over time.

The automatic operation of the stapler is very fast, up to 30 staples/minute (1,700 per minute), and can be easily changed from zero to the maximum by means of a set screw. If necessary, automatic operation can be switched off by pushing a button. In this way, you can easily switch between single-shot and automatic firing.

This unique design makes working with the tool very easy. The nose has a pivoting door that can be easily opened when cleaning is required. The low noise level and negligible recoil make the JK20A689L even more appealing.

  • Length: 365 mm | 14.4 in
  • Width: 43 mm | 1.7 in
  • Height: 150 mm | 5.9 in
  • Weight: 1,2 kg | 2.6 lbs
  • Magazine capacity: 286 fasteners
  • Max. pressure: 70 bar | 100 psi
  • Staple leg length: 12 - 16 mm | 1/2 - 5/8 in
  • Nose length: 14 mm | 0.6 in
  • Recommended working pressure: 5,0 - 6,0 bar | 72 - 87 psi
  • Air consumption per driving operation at 6 bar operating pressure: 0,2 litres
  • Lubrication: Yes
  • CE declared: Yes
  • Noise characteristic levels according to: EN 12549
  • A-weighted single-event emission sound pressure level at work station: 85 dB
  • A-weighted sound energy level: 91 dB
  •

    This product is made to order please contact us for availability.

    Number: 0333 8000 345 - or write to us here



    1 year warranty Josef Kihlberg Stapler JK20A689L

    Kilhberg offers different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

    12 Month Warranty

    This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
