Josef Kihlberg Carton Bottom Stapler B561PN

Depth Control
Single Shot
Extreme Pro
Inc. VAT and Free UK Mainland Shipping. More shipping options available

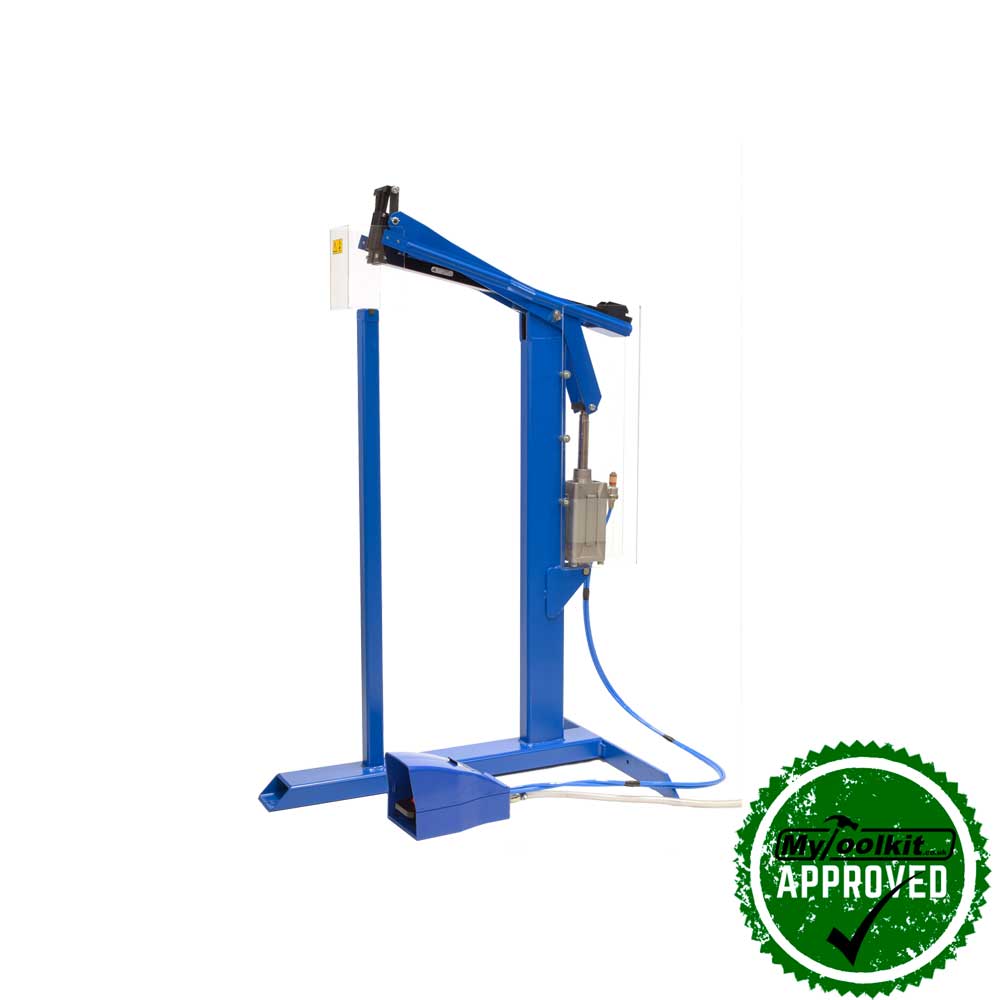

Josef Kihlberg Pneumatic Carton Bottom Stapler B561PN

You’ll be questioning how you ever did business without one!

The Josef Kihlberg Carton Bottom Stapler B561PN is the biggest and baddest box stapler in Kihlberg’s arsenal. This beast of a machine is a pneumatic bottom stapler, designed to secure your packaging as tightly and safely as possible.

The pneumatic element gives the stapler consistent power for repetitive fastening; perfect for use in a fast paced packing environment.

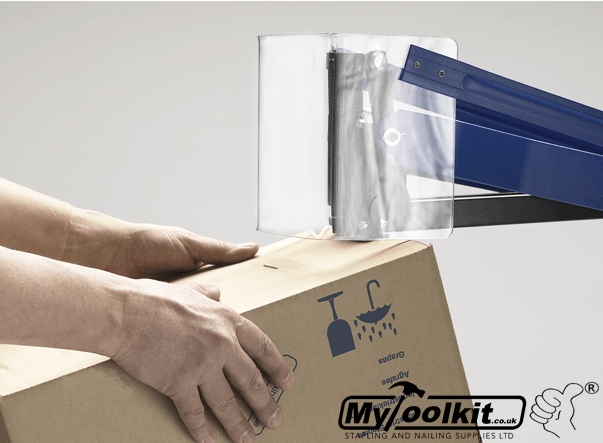

The B561PN also has a safety screen encasing the driver to help keep your workplace safe. This stapler drives our 32 Series Staples in leg lengths between 15mm and 22mm.

If you’re looking for something with a little less kick, take a look at the Kihlberg B561, the manual version of the bottom box stapler.


Just like all of Kihlberg’s tools, the B561PN is made to order. This means there may not be a faster delivery option available. Call the office on 0333 8000 345 or send us a message to discuss the delivery times and delivery costs.

  • Length:920 mm | 36.2 in
  • Width:750 mm | 29.5 in
  • Height:1350 mm | 53.1 in
  • Weight:42 kg | 92.6 lbs
  • Stapling gap: 95 mm | 3.7 in
  • Throat depth:400 mm | 15.7 in
  • Free anvil height:1000 mm | 39.4 in
  • Magazine capacity:300 fasteners
  • Max. pressure:7,0 bar | 100 psi
  • Staple leg length:15 - 22 mm | 5/8 - 7/8 in
  • Recommended working pressure: 5,0 bar | 70 psi
  • Air consumption per driving operation at 6 bar operating pressure:2,0 litres
  • Lubrication:No
  • CE declared:Yes
  • Noise characteristic levels according to:EN 12549
  • A-weighted single-event emission sound pressure level at work station: 84 dB
  • A-weighted sound energy level:91 dB

Excellent for:

  • Strong and safe closure of cartons
  • Bottom stapler,
  • Packaging departments and industry
