Josef Kihlberg Bottom Stapler B560PN

Josef Kihlberg Bottom Stapler B560PN

Regular price £1,564.99 GBP
Regular price Sale price £1,564.99 GBP
Sale Sold out
Tax included.

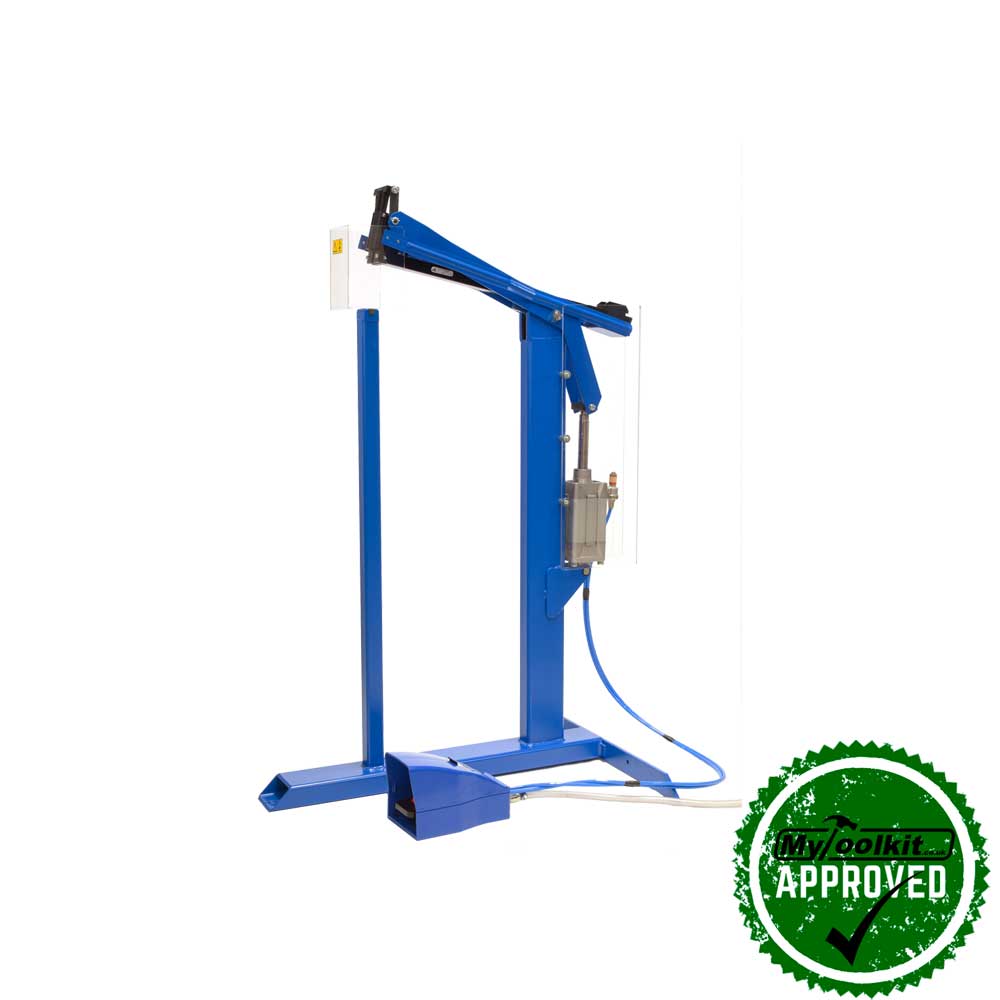

Josef Kihlberg Pneumatic Bottom Stapler B560PN (35 series)

Kihlberg – keeping bottoms secure since 1841!

That sounds worse than it actually is – of course we are talking about the Josef Kihlberg 35 Series Bottom Stapler! What else! Unlike the other Kihlberg Bottom Stapler (the B560) this one is air powered and therefore quicker and gives a more consistent drive.

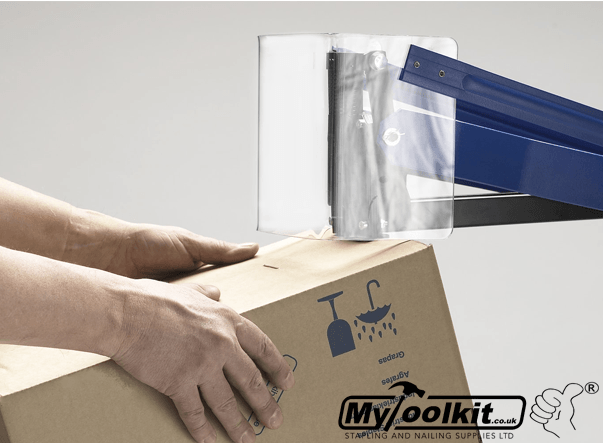

The stapler has a protective shield in front of the driver to keep your hands safe as these 35 Series Staples are big ones! The B560PN takes 15mm, 18mm and 22mm staples so you can personalise depending on the thickness of your packaging material. The air power makes this bottom stapler perfect for a fast-paced packing line in a busy warehouse.

If you’re looking for something perhaps for a smaller company with less demand, take a look at our manually operated version of this stapler – the Kihlberg B560.


Just like all of Kihlberg’s products, the B560PN is made to order.



  • Depth Adjuster: Clinch and Depth
  • Trigger Type: Single Shot
  • Exhaust Type: Rear
  • Safety: No
  • Power: Air (Compressor)
  • Loading: Top
  • Fastener Type: 16 Gauge 35 Series 35mm Crown 15mm, 18 and 22mm Staples
  • Nose Type: Flat
  • Belt Hook: No
  • Easy Clear Jam: Yes
  • Carry Case: No
  • Dry Fire Lockout: No
  • Fastener View: Yes
  • Usage: Pro Industrial
  • Weight: 42Kg
  • XL Magazine
  • Made to Order in Sweden
  • Length:920mm
  • Width:750mm
  • Height:1350mm
  • Stapling gap: 95mm
  • Throat depth:400mm
  • Free anvil height:1000mm
  • Magazine capacity:250 fasteners
  • Recommended working pressure: 5 bar | 70 psi
  • Air consumption per driving operation at 6 bar operating pressure:2,0 litres
  • Lubrication:No
  • CE declared:Yes
  • Noise characteristic levels according to:EN 12549
  • A-weighted single-event emission sound pressure level at work station: 84 dB
  • A-weighted sound energy level:91 dB


Perfect for:

  • Strong and safe closure of cartons
  • Bottom stapler
  • Packaging departments and industry


1 year warranty Josef Kihlberg Bottom Stapler B560PN

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
