KIT: Tacwise 90 Series Stapler (12-32mm) with Evolve Eco 6 Litre Compressor

Description

90 Series Stapling Gun and Compressor Kit for Woodworking

Joiners, floorers, and furniture manufacturers unite!

We’ve put together this handy all-in-one kit for all of you general contractors out there! It includes everything you need to get set up for a job – including an industry favorite 90 Series stapler and a super silent compressor! You can thank us later, but for now, just chose which size 90 Series staples you need for your job and you can rely on us to sort the rest!

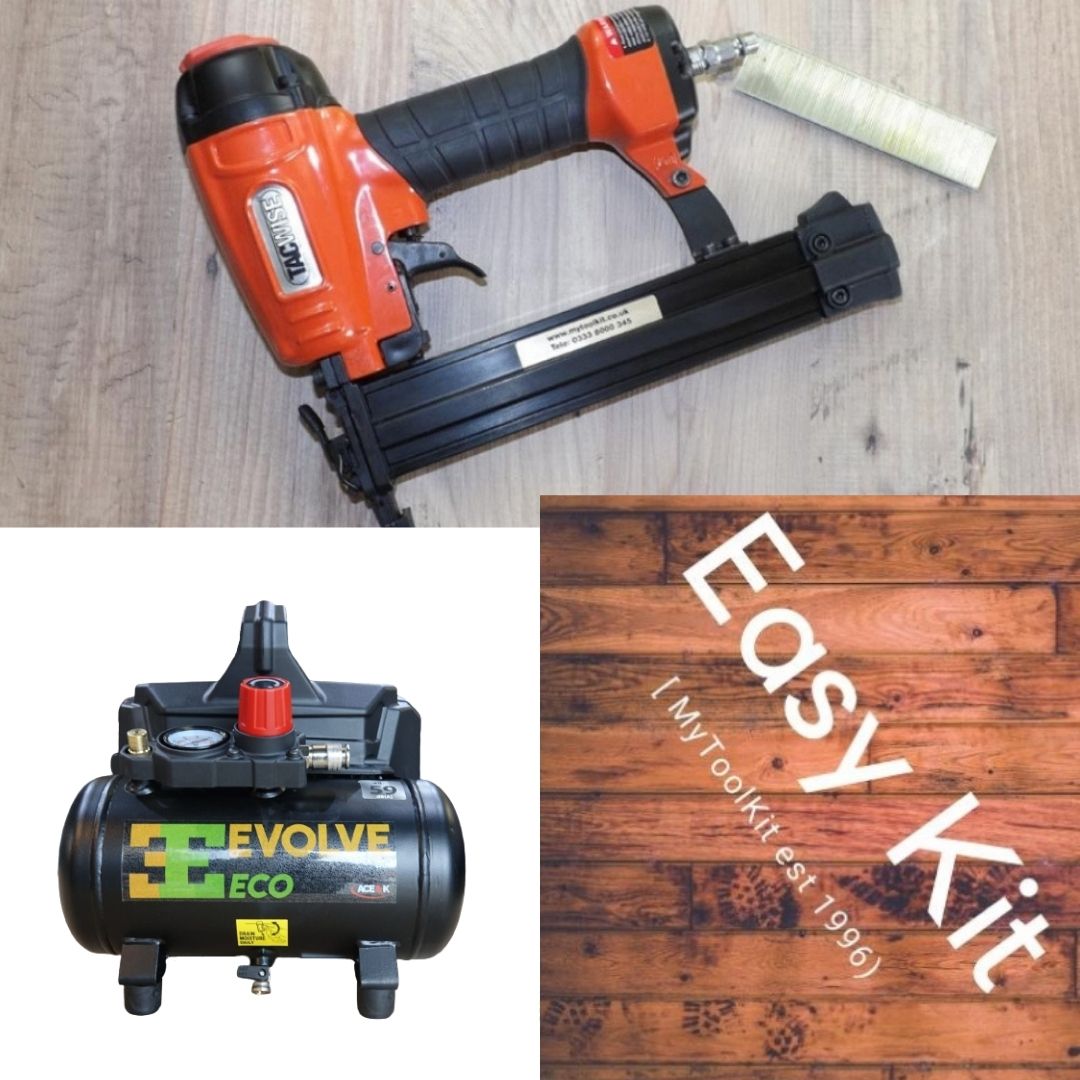

What’s included? :

• Tacwise 90 Series Air Stapler (12-32mm)
• Ace & K Evolve Eco 6L Silent Compressor
• 10m Coiled Airline (with hi-flow quick release fitting)
• A box of 90 Series Galvanised Staples (5,000) (please instruct which size is required in order comments box)

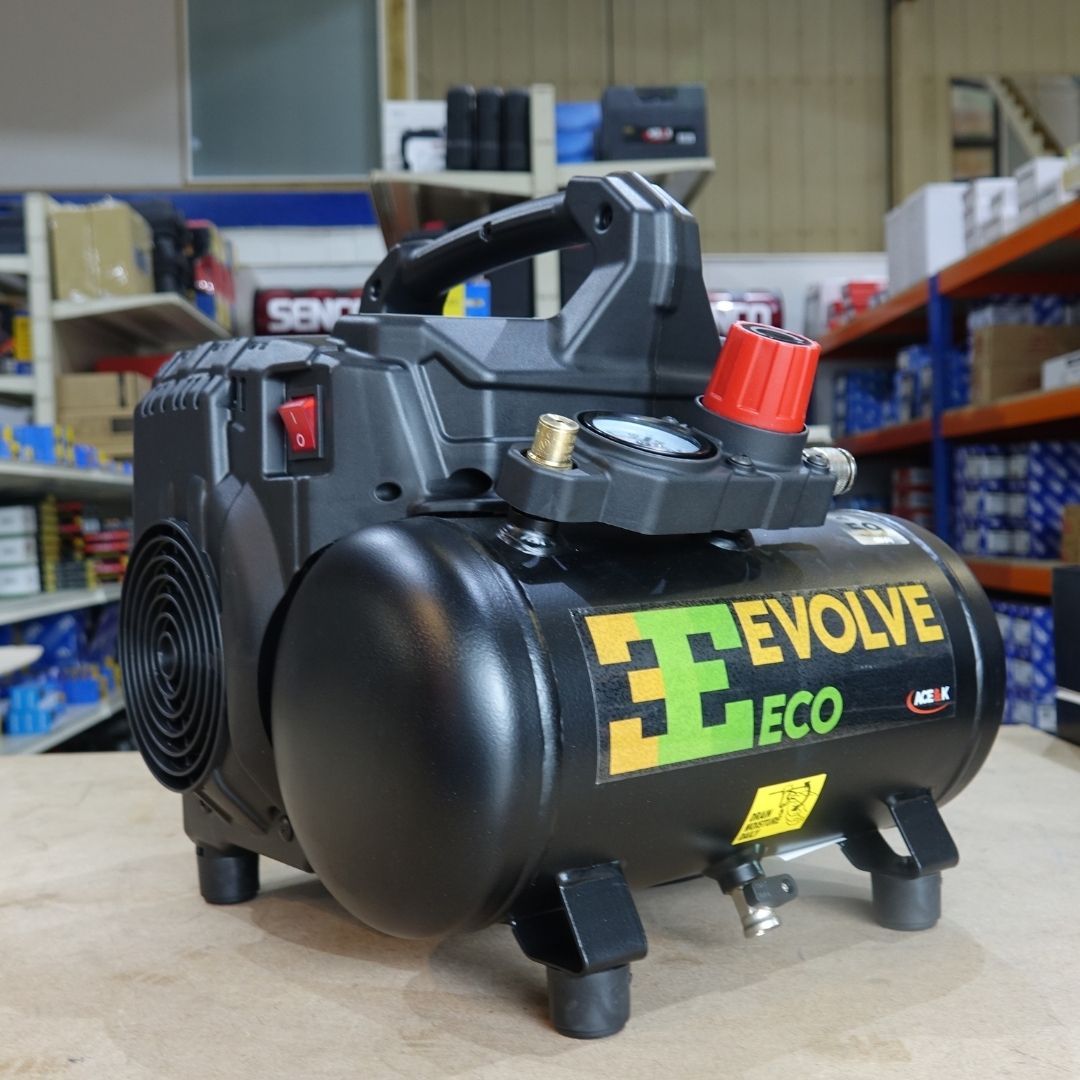

Compressor:

The ultimate compressor for DIY'ers on a budget.

This 6l Ace & K compressor is the quietest compressor we currently stock, producing just 59dB of noise - 1dB less than the Senco AC8305 AND over 40% cheaper! 59dB of noise is about equivalent to the noise produced within a 2-way conversation - with this compressor, you're guaranteed not to disturb anyone. The structure has been designed and manufactured to provide the perfect, most affordable concoction of portability, durability, and practicality for all hobbyists and 'do-it-yourself(ers)'.

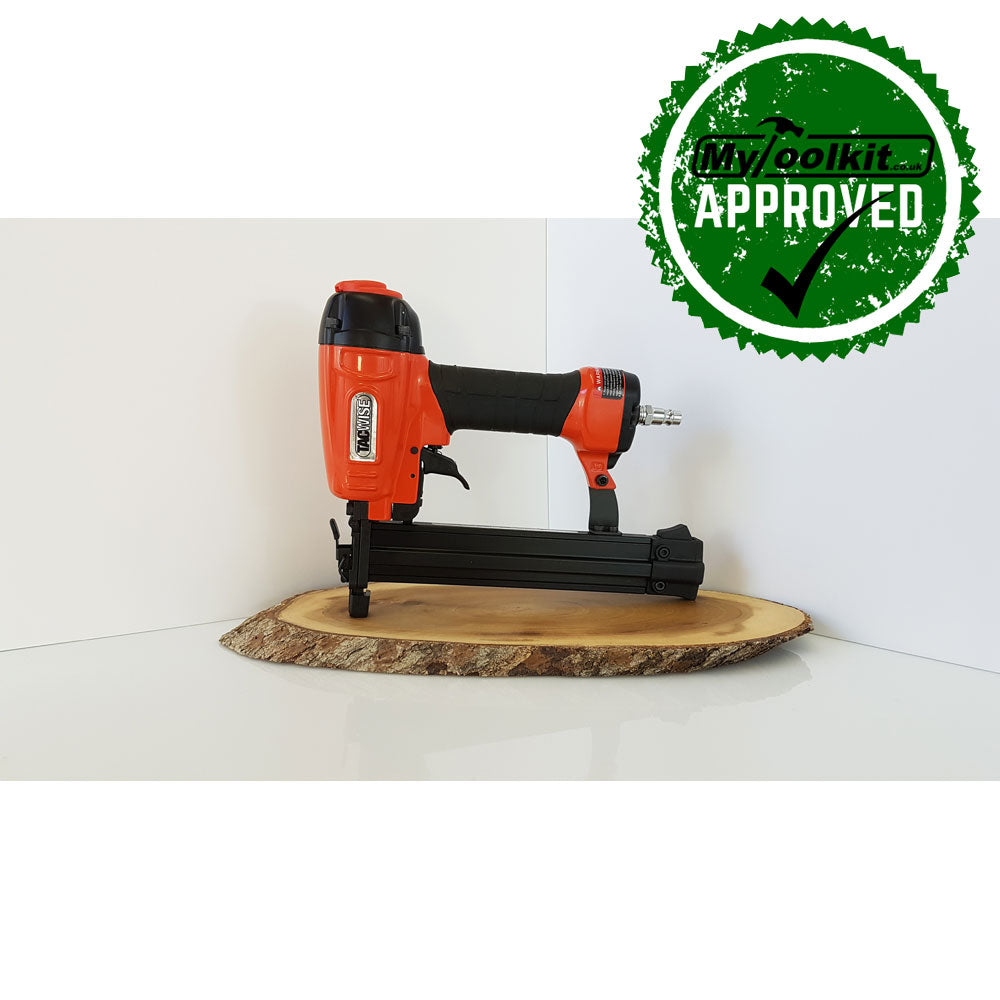

Stapler:

The 90 Series stapler is an exceptionally versatile tool - for use in furniture manufacture, flooring, and general joinery - it's a must-have in any toolkit! This Tacwise tool is a favorite due to its reliability, durability, lightweight body and not to mention its competitive price.

The fantastic Tacwise 90 Series C9032V Stapler is an ideal pairing for the flooring contractors also! Lightweight and easy to maneuver with a top-load magazine designed for convenience. As well as for flooring, the C9032V has proved particularly effective in the making of animal enclosures – not only in the building of the structure but also for attaching the wire mesh. See the uses tab for more.

Equipped with a robust magnesium body, the C9032V is ready for workshop action, and with its quick-release staple gate, you’ll be stapling away with no interruptions. Additional features include an adjustable exhaust deflector to keep debris away from your face; a no-mar tip to avoid bruising softer woods and an adjustable depth of drive for personalisation. With so many benefits to this tool in conjunction with the compressor, airline and free staples you can’t really beat it!

Used with 90 Series Staples, which we supply in galvanized and stainless steel. NB this offer includes galvanized staples only.

Want to talk to someone? Or have any general industry questions? Give us a call on 0333 8000 345 and ask for an upholstery tool expert. Alternatively, drop us a message using our online contact form.

Specification

Stapler:

• Trigger: Contact Trip
• Width-Depth-Height: 273 x 67 x 231mm
• Weight: 1.2 kg
• Load Capacity: 100 Staples
• PSI: 60-100
• dBA (noise) : 88
• Fastener Type: 90 Series
• Fastener Length: 12mm - 32mm
• Carry Case Included: Yes
• Powered By: Compressor
• Warranty: 12 Months

Compressor

• Dimension (LxWxH) - 380x380x385mm
• Net weight - 17.1 kg
• Sound pressure level (Lpa)- 59dB
• Voltage (ac) - 230V
• Frequency - 50Hz
• Nominal power (KW) - 0.75kW
• Nominal power (HP) - 1HP
• Rotations per minute (RPM) - 1450RPM
• Tank capacity - 6 Litre
• Max output pressure - 8 bar
• Air drawn in - 105 litres/minute
• Number of air outlets - 1

Uses

• Attaching wire mesh netting to wood
• Cane/rattan furniture
• Coffin manufacture
• Drawer bottoms/cabinet assembly
• Exhibition/show construction
• Fixing underlayment
• Kitchen & bedroom furniture
• Panelling
• Pet cages, runs and enclosures
• Plasterboard
• Cabins, mobile homes, caravans
• Presentation boxes
• Shoe repair
• Staircase construction and banisters
• Sub flooring/boarding out & plywood
• Theatre & film scenery
• Window display/shop fitting
• Securing swatches in textile albums
• Flooring

Warranty

Ace and K and Tacwise offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
