Stanley Bostitch 97 Series Stapler (4-16mm) 21697B-E

Description

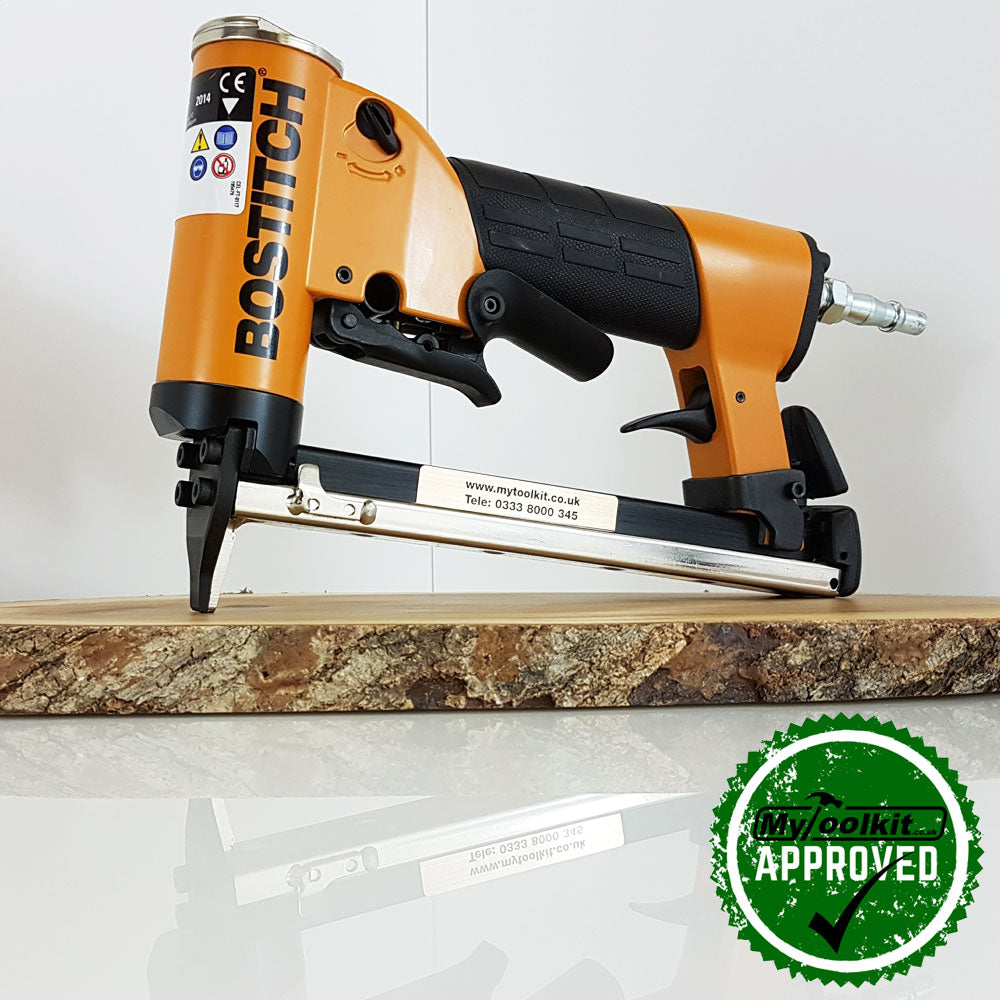

Stanley Bostitch 97 Series Stapler (4-16mm) 21697B-E

Furniture manufacture is no match for the Bostitch 97 Series!

Presenting the Stanley Bostitch 97 Series Air Stapler; known also as the 21697B-E. and the Bostitch 93. This pneumatic workhorse is perfect for heavy duty industrial use in furniture framing, cabinet manufacture, and attaching spring to frame. Considering its effective heavy duty application skills inclusive of shoe manufacturing, the 21697B-E is extremely lightweight compared to others in its category, weighing in at around 0.8kg!

Bostitch are really taking the ‘small but mighty’ phrase literally here! In terms of useful features, the stapler has a safety on the trigger to prevent any accidental driving; a bottom-load magazine for easy reloading; a rear exhaust to deflect any debris; and the 21697B-E even comes with power control so you can adapt the driving power to your material or desired finish. This excellent Bostitch stapler works with our equally brilliant Galvanised 97 Series Staples in lengths from 4mm to 16mm, which work fantastically for indoor projects.

As always, if you need any stapling and nailing help or advice, don’t hesitate to call us on 0333 8000 345, or to send us a message via our online contact form.

While you’re browsing, take a look at our YouTube video below to see the 21697B-E in more detail.

Specification

• Power Adjuster
• Exhaust Type: Rear
• Trigger Type: Single Shot
• Safety:Trigger
• Rubber Grip: Yes
• Power: Air (Compressor)
• Loading: Bottom
• Fastener Type: 21 GAUGE 0.6mmx0.9 97 Series 4.5mm Crown 4-16mm
• Nose Type: Slim
• Belt Hook: No
• Easy Clear Jam: No
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: No
• Usage: Pro Industrial
• Weight: 0.837Kg
• Width 40 mm
• Length 221 mm
• Height 150 mm
• Magazine capacity (max) 139
• Operating pressure 90 - 8.40 BAR
• Air Consumption Ltr.per shot @ 5.6 bar 17
• Air fitting thread type 1/4 BSP
• Noise LPA 1sd   40LWA 1sd 00
• LPA 1s, 1m 00
• Vibration / Uncertainty   < 2.5 / N/A m/s2

Uses

Perfect for fixing:

• Shoe making
• Wood
• Cane/rattan furniture
• Coffin manufacture
• Pet cages
• Runs/enclosures
• Presentation boxes
• Shoe repair
• Theatre/film scenery
• Exhibition/show construction
• Display/shop fitting
• Pine furniture manufacture
• Panelling
• Kitchen & Bedroom furniture
• Furniture frames
• Cabinet making
• Spring to frame

Warranty

Stanley Bostitch offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long. 12 Month Warranty:

This warranty covers all housing and the cap of the tool.

This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings. For more information see our Shipping and Returns policy.
