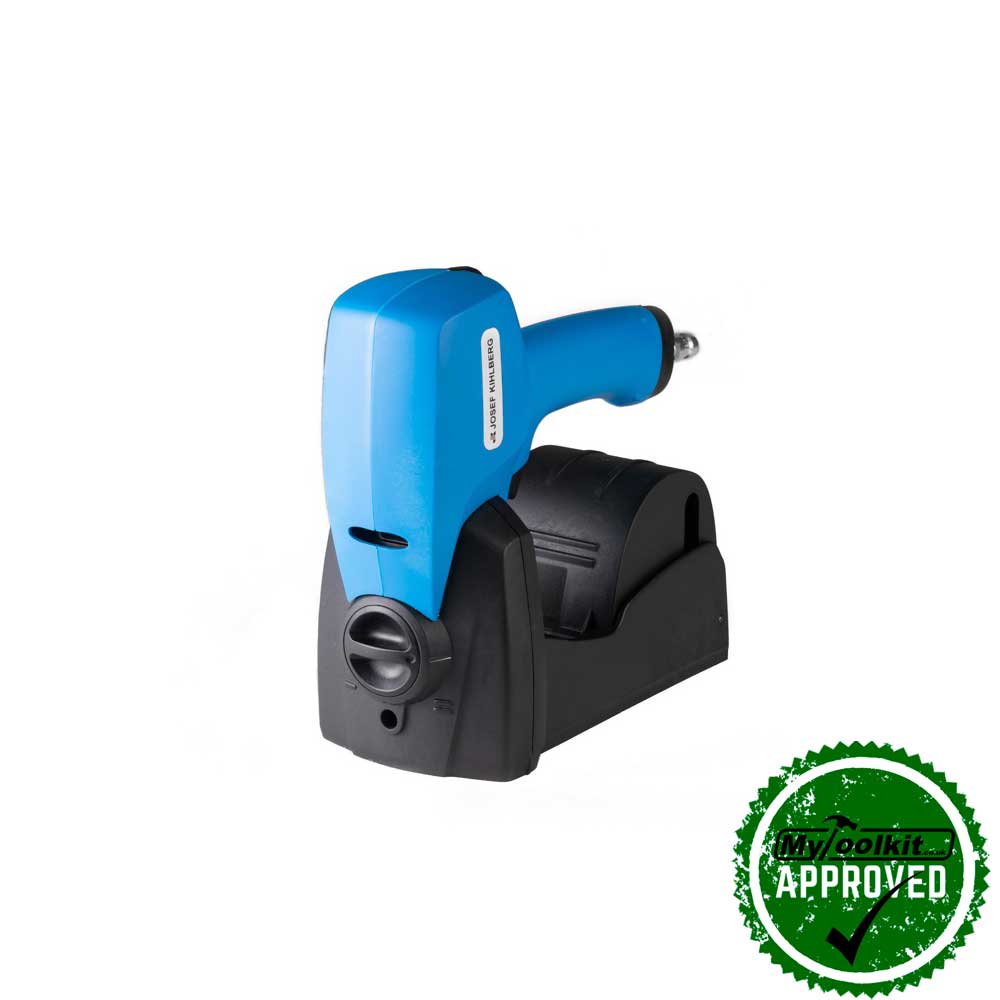

Josef Kihlberg Top stapler R555PN

Description

Our Swedish-manufactured R555PN pneumatic roller stapler should be used if loading capacity is a crucial factor. The tool is quickly loaded and light with a roll consisting of 1,000 staples. The tool is equipped with cover caps of engineering plastic providing an extremely low weight; wear parts are made of metal. JK555 staples with leg lengths JK555-15 and 18 mm make tool adjustment easy. The tool is easy to adjust for different stapling depths and has precise (repeatable) stapling and a complete stapling cycle.

This product is made to order please contact us for availability.

Number: 0333 8000 345 - or write to us here

Specification

• Depth Adjuster: Clinch and Depth
• Trigger Type: Single Shot
• Exhaust Type: Rear
• Safety: No
• Power: Air (Compressor)
• Loading: Top
• Fastener Type: 17 Gauge JK555 Series 32mm Crown 15 and 18mm Roll Staples
• Nose Type: Flat
• Belt Hook: No
• Easy Clear Jam: Yes
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: Yes
• Usage: Pro Industrial
• Weight: 1.8Kg
• Made to Order in Sweden
• Length:235mm
• Width:104mm
• Height:205mm
• Magazine capacity:1000 fasteners
• Max. pressure:8,0 bar | 116 psi
• Recommended working pressure:5,0 - 6,0 bar | 75 - 85 psi
• Air consumption per driving operation at 6 bar operating pressure:0,95 litres
• Lubrication:Yes
• CE declared:Yes
• Noise characteristic levels according to:EN 12549
• A-weighted single-event emission sound pressure level at work station:82 dB
• A-weighted sound energy level:93 dB
• Vibration level: Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11

Uses

Excellent for:

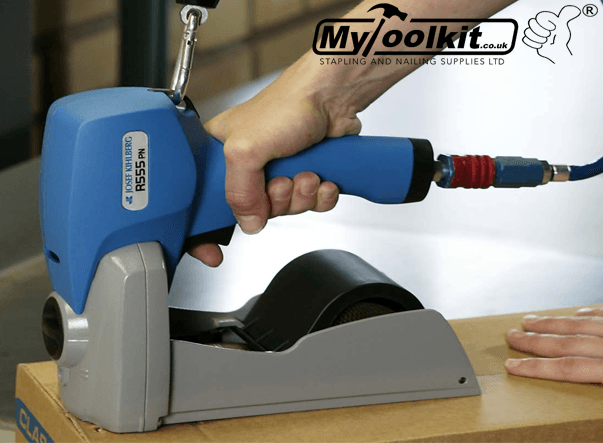

• Roll stapler with large loading capacity for closing board packaging.

Warranty

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
