Josef Kihlberg Top Stapler a.560PN22

Description

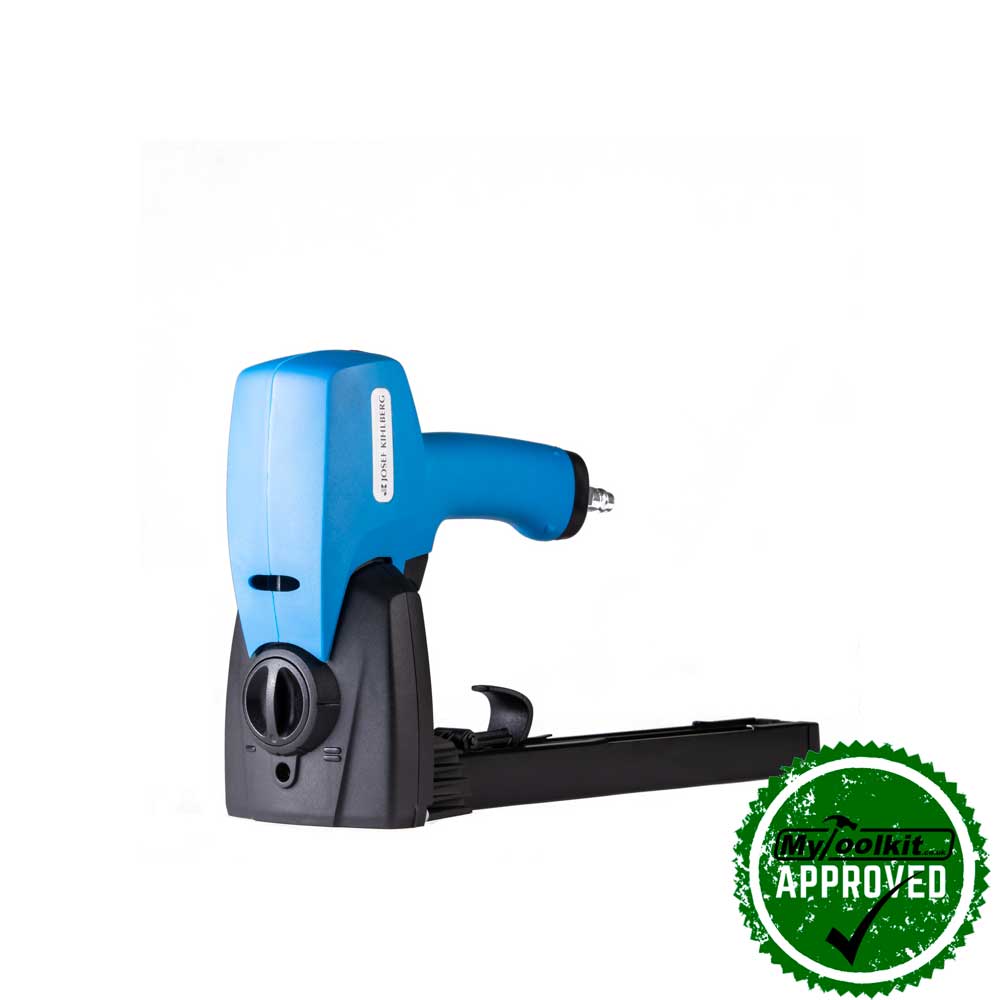

Josef Kihlberg Air Top Stapler a.560PN22 (35 series)

Longer legs for bigger boxes!

Presenting the Josef Kihlberg 35 Series Pneumatic Top Stapler, known also as the a.560PN22. Many of the Kihlberg box staplers may seem very similar, but there are some key differences that make huge differences! For instance, this a.560PN22 only drives our 35 Series Staples in a 22mm leg length. This makes it perfect for those larger and thicker packing materials that need a tighter seal.

The body of the stapler is a mixture of hardwearing metal and plastic protective caps, which gives it comfortable and ergonomic handling. The pneumatic powering means a consistent drive to the staples, leaving your packaging fastenings neat and tidy.

If you’re looking for something a little smaller, the Kihlberg a.560PN has the same great features but drives the 15mm and 18mm staples instead!

Delivery

Kihlberg always strives to produce the best quality possible in their products; this is why they make all of their tools to order! Please call the office on 0333 8000 345 or write to us to find out the time of delivery.

Specification

• Depth Adjuster: Clinch and Depth
• Exhaust Type: Rear
• Trigger Type: Single Shot
• Safety: No
• Rubber Grip: Yes
• Power: Air (Compressor)
• Loading: Top
• Fastener Type: 16 Gauge 35 Series 35mm Crown 22mm Staples
• Nose Type: Flat
• Belt Hook: No
• Easy Clear Jam: Yes
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: Yes
• Usage: Pro Industrial
• Weight: 1.8Kg
• Made to Order in Sweden
• Length:404mm
• Width:104mm
• Height:205mm
• Magazine capacity:100 fasteners
• Recommended working pressure:5,0 - 6,0 bar | 70 - 90 psi
• Air consumption per driving operation at 6 bar operating pressure:0,95 litres
• Lubrication:Yes
• CE declared:Yes
• Noise characteristic levels according to:EN12549
• A-weighted single-event emission sound pressure level at work station:84 dB
• A-weighted sound energy level:89 dB
• Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

Uses

Excellent for:

• Thicker packing materials
• Closing of transport packaging

Warranty

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
