Josef Kihlberg Top Stapler 561-15PN

Description

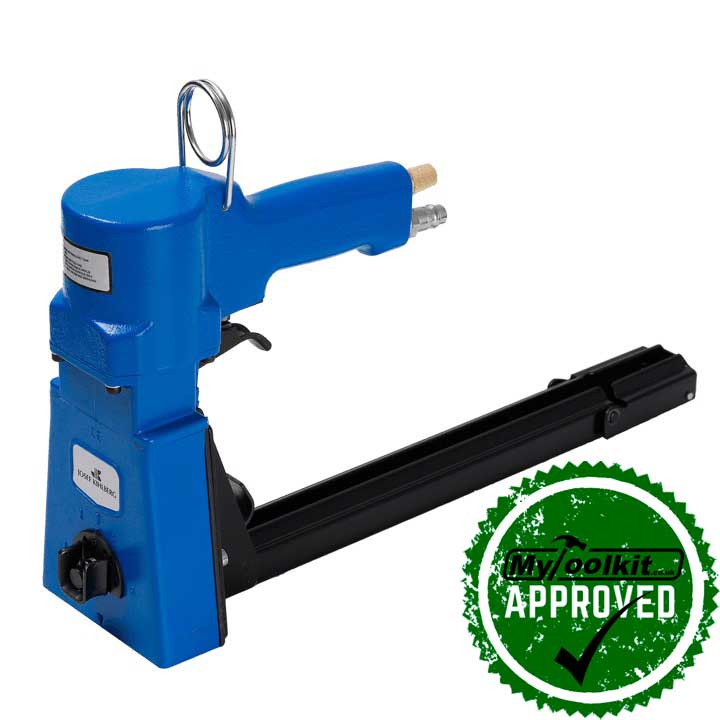

Josef Kihlberg Top Air Stapler 561-15PN (32 series)

It may only do one thing, but it’s the best at doing it you will find!

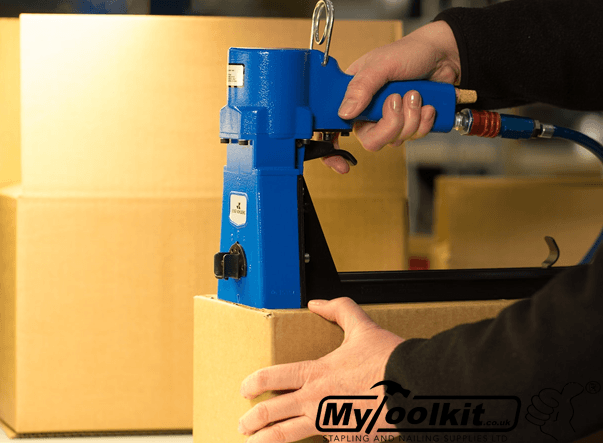

Introducing the Josef Kihlberg 32 Series Air Top Stapler 561-15PN, that drives the 15mm 32 Series Staples only! This is a highly specialised box closing stapler that would suit a packaging and dispatch line for boxes with a thin to medium material. With this carton closer, you can seal packages tightly and securely in seconds.

The 561-15PN is easy to adjust for different stapling depths and has excellent balance. Sealing with staples will help you to reduce on both material and labour cost.

If you’re looking for a similar tool with a little more versatility, check out the Kihlberg c.561PN or the Kihlberg c.561PN22.

Delivery

All of Josef Kihlberg’s tools are made to order in Sweden. Please phone the office on 0333 8000 345 or send us a message if you are interested in purchasing and we will find out the lead delivery times.

Specification

• Depth Adjuster: Clinch and Depth
• Exhaust Type: Rear
• Trigger Type: Single Shot
• Safety: No
• Rubber Grip: Yes
• Power: Air (Compressor)
• Loading: Top
• Fastener Type: 17 Gauge 32 Series 32mm Crown 15mm Staples
• Nose Type: Flat
• Belt Hook: No
• Easy Clear Jam: Yes
• Carry Case: No
• Dry Fire Lockout: No
• Fastener View: Yes
• Usage: Pro Industrial
• Weight: 2.5Kg
• Joist Hanger
• Made to Order in Sweden
• Length:470mm
• Width:100mm
• Height:305mm
• Magazine capacity:150 fasteners
• Recommended working pressure:4,0 - 5,0 bar | 60 - 75 psi
• Air consumption per driving operation at 6 bar operating pressure:1 litres
• Lubrication:Yes
• CE declared:Yes
• Noise characteristic levels according to:EN 12549
• A-weighted single-event emission sound pressure level at work station:88 dB
• A-weighted sound energy level:92 dB
• Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

Uses

• Sealing packed cardboards from the outside

Warranty

Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.

12 Month Warranty

This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.

For more information see our Shipping and Returns policy.
