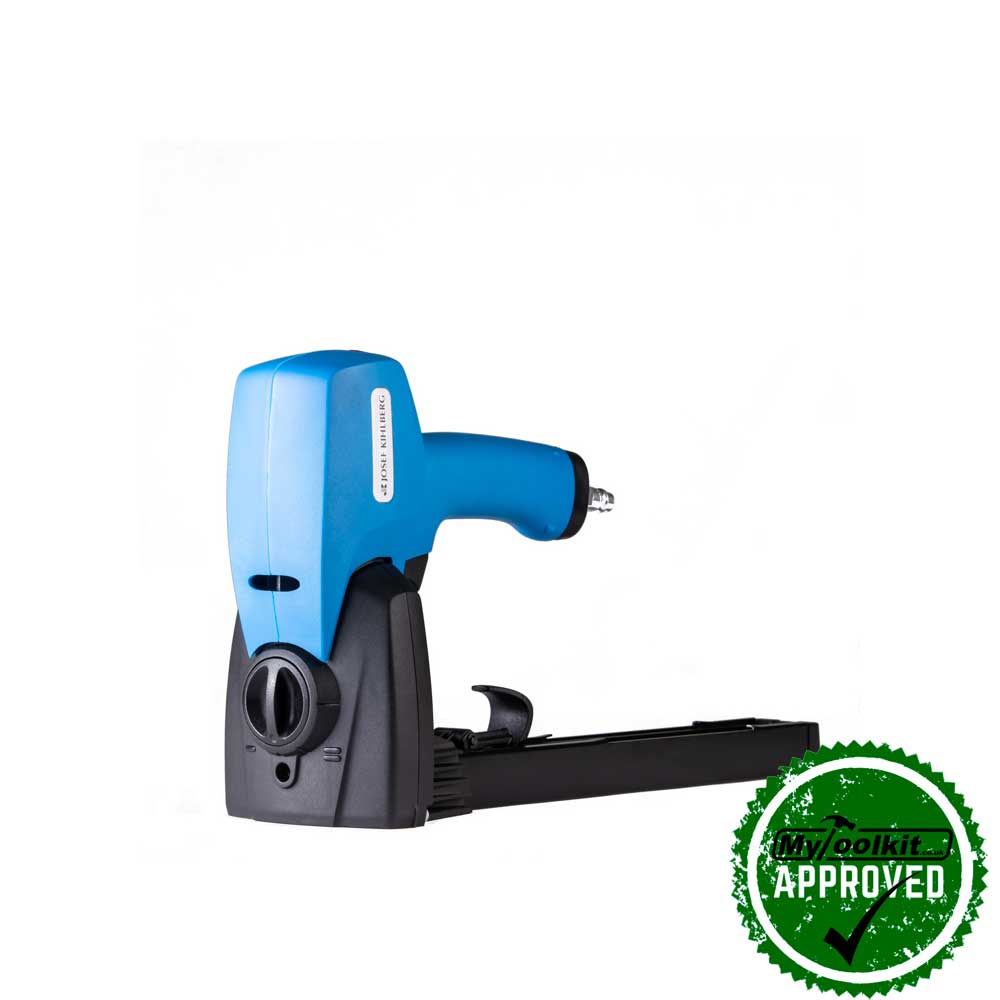

Josef Kihlberg Pneumatic Top Stapler c.561PN (32 series)
The best kept secret in carton closing.
Presenting the Josef Kihlberg 32 Series Air Top Stapler, also known as its model number, c.561PN. Kihlberg is a Swedish manufacture known for its incredible quality and reliability.
This Top Stapler is air powered by a compressor, and is extremely lightweight, making it perfect for use with an overhead airline. The stapler’s body is made up of metal wear parts and plastic covering caps, and the handle has a comfort covering to help prevent any long term aches.
If its high quality and secure carton closing you’re after, then the c.561PN is the stapler for you. This Kihlberg Top Stapler drives our 15mm and 18mm 32 Series Staples – only the best staples for the best stapler!
Looking for something that can carry a bigger staple? Take a look at the Kihlberg c.561PN22
Kihlberg makes all of their tools to order, no second hand parts here! This means however there can sometime be a slight wait on delivery. Give us a call on 0333 8000 345 or send us a message and we’ll find out the lead time for you!
Length:404 mm | 15.9 in
Width:104 mm | 4.1 in
Height:205 mm | 8.1 in
Weight:1,8 kg | 4 lbs
Magazine capacity:150 fasteners
Max. pressure:8,0 bar | 116 psi
Staple leg length:15 - 18 mm | 5/8 - 3/4 in
Recommended working pressure:5,0 - 6,0 bar | 70 - 90 psi
Air consumption per driving operation at 6 bar operating pressure:0,95 litres
Noise characteristic levels according to:EN 12549
A-weighted single-event emission sound pressure level at work station:84 dB
A-weighted sound energy level:89 dB
Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.
Complete stapling cycle

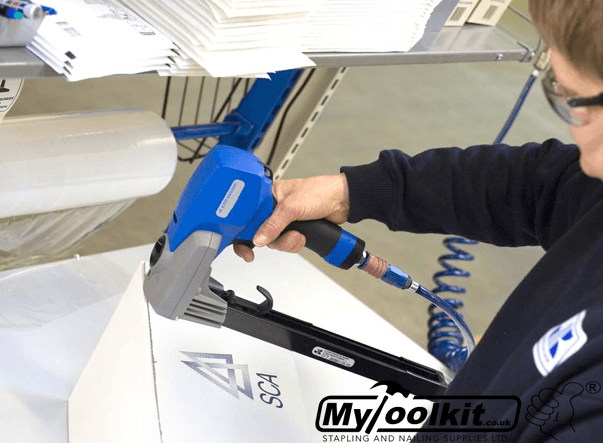

Carton top stapling
Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.
12 Month Warranty
This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
