Josef Kihlberg Pneumatic Top Stapler c.561PN22 (32 series)
The pneumatic beast of carton closing!

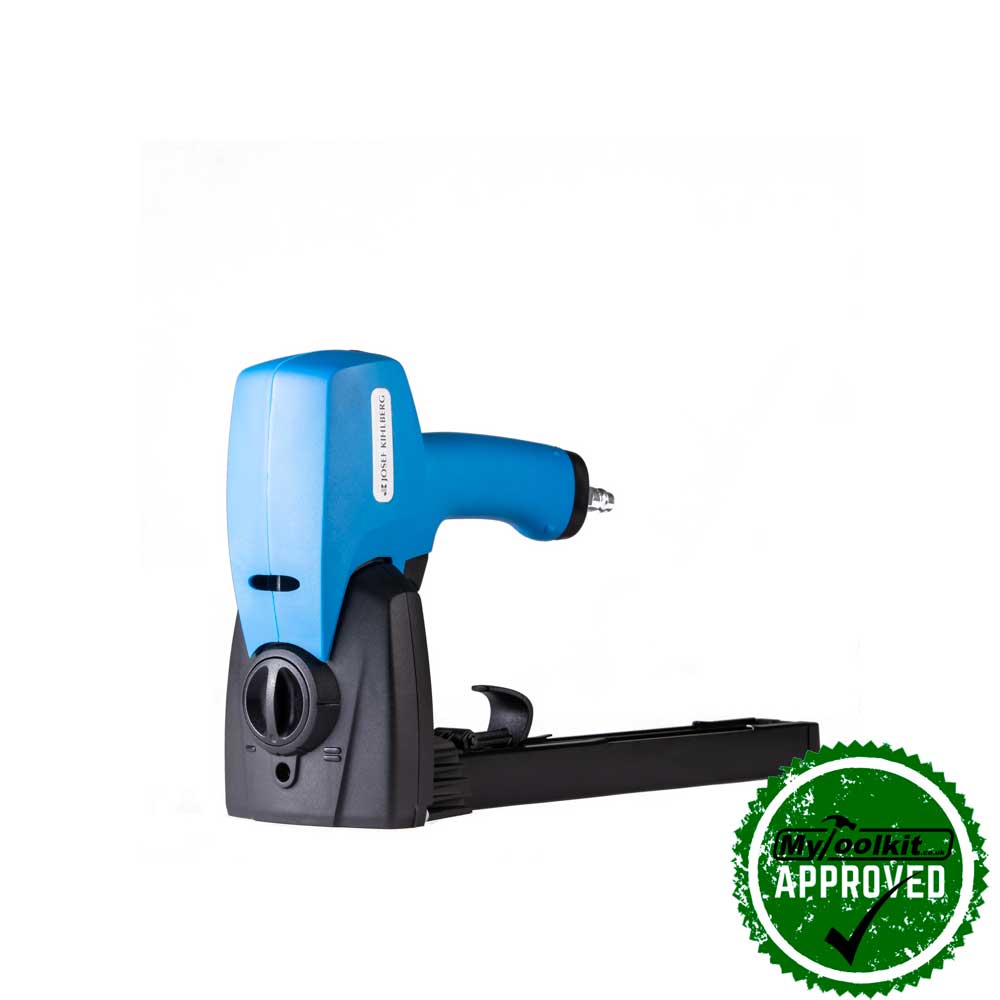

Here is the Josef Kihlberg 32 Series Air Top Stapler c.561PN22. Now you may have seen our other Kihlberg 32 Series Air Top Stapler c.561PN and are wondering what the difference is…there’s barely any! Both tools are air powered; both with a comfort handle; both with adjustable stapler depth; and most importantly, both with that Kihlberg quality seal of approval.
The one BIG difference however, is that this box stapler drives our 32 Series Carton Closing Staples in leg lengths 18mm and 22mm, whereas the other stapler has a smaller leg length range of 15mm and 18mm leg lengths. Closing large boxes with thick material? Then this is the stapler that you need!
As Kihlberg make all of their tools to order, they are not available for next day delivery. Please call the office on 0333 8000 345 or send us a message to find out the delivery waiting time.
This Swedish manufactured stapler is equipped with cover caps of engineering plastic presenting with extremely low weight; low wear parts.

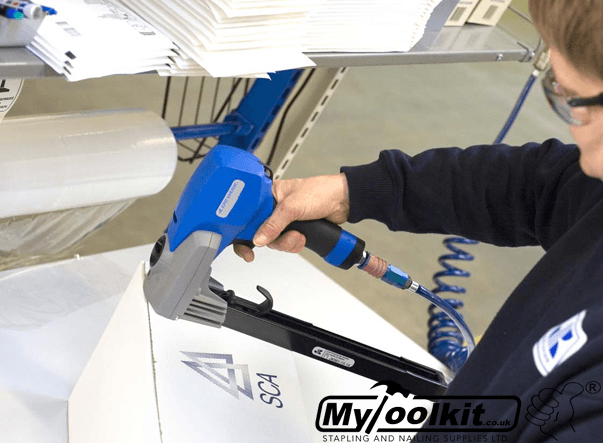

See a similar stapler in action below!
Depth Adjuster: Clinch and Depth
Exhaust Type: Rear
Trigger Type: Single Shot
Rubber Grip: Yes
Power: Air (Compressor)
Fastener Type:17 Gauge 32 Series 32mm Crown 22mm Staples
Nose Type: Flat
Belt Hook: No
Easy Clear Jam: Yes
Carry Case: No
Dry Fire Lockout: No
Fastener View: Yes
Usage: Pro Industrial
Made to Order in Sweden
Magazine capacity:150 fasteners
Recommended working pressure:5,0 - 6,0 bar | 70 - 90 psi
Air consumption per driving operation at 6 bar operating pressure:0,95 litres
Noise characteristic levels according to:EN 12549
A-weighted single-event emission sound pressure level at work station:84 dB
A-weighted sound energy level:89 dB
Vibration level:Vibration rate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.
Complete stapling cycle
Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.
12 Month Warranty
This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
